TPS650231RSBR - Texas Instruments

Description: Smart phones 2.5V to 6V 40-Pin WQFN EP T/R

Download TPS650231RSBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

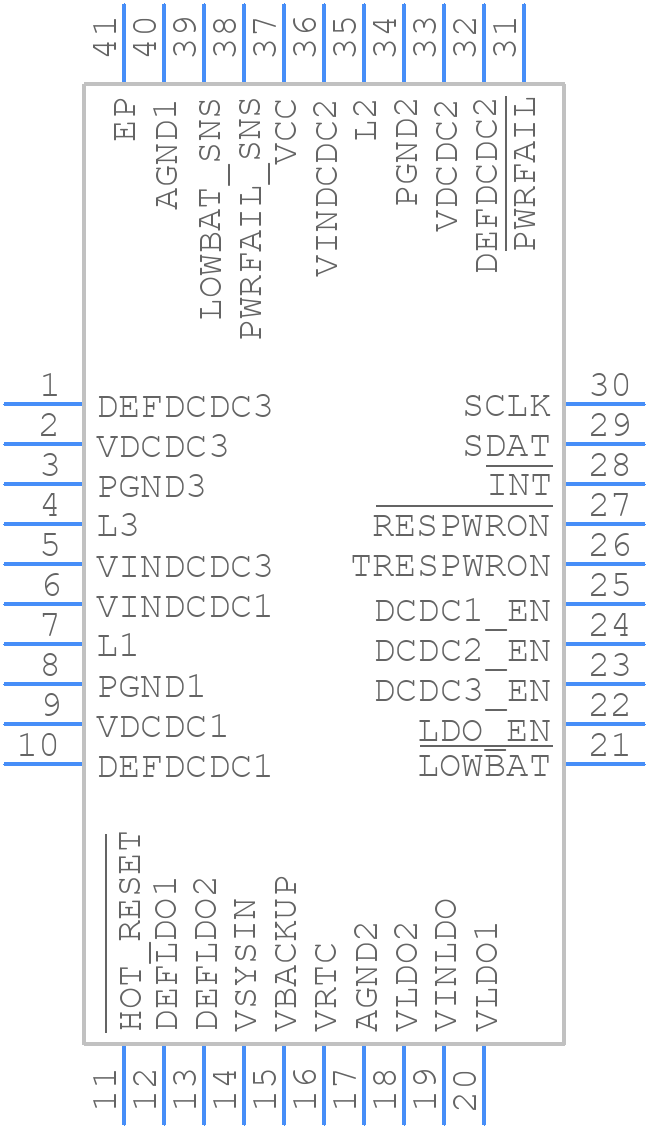

Symbol
TPS650231RSBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS650231RSBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040B
click to zoom
3D Models
TPS650231RSBR - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040B
click to zoom

TPS650231RSBR Details

  • Manufacturer Part Number:

    TPS650231RSBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    6

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.7 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2550 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS650231RSBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS650231RSBR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS650231RSBR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input and output capacitors. The capacitance value should be at least 4.7uF for the input capacitor and 10uF for the output capacitor.
  • The TPS650231RSBR is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating, but the maximum junction temperature should not exceed 125°C.
  • The TPS650231RSBR has a fixed output voltage option, but it can be configured for a specific output voltage using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 / R2 + 1), where R1 and R2 are the resistors in the divider network.
  • The maximum input voltage for the TPS650231RSBR is 18V. However, the device can operate with input voltages as low as 2.7V, but the output voltage regulation may not be guaranteed.
