Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific application requirements, such as the output current, switching frequency, and desired ripple current. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult the inductor manufacturer's datasheet and to consider factors such as inductor core material, size, and saturation current.
The maximum ambient temperature for the TPS650243QRHBRQ1 is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for more information on thermal derating.
The TPS650243QRHBRQ1 is a QFN package device, which is generally suitable for high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device's reliability in such environments.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. It's also recommended to consult the device's application notes and to use oscilloscopes and other diagnostic tools to identify and fix issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS650243QRHBRQ1 Overview

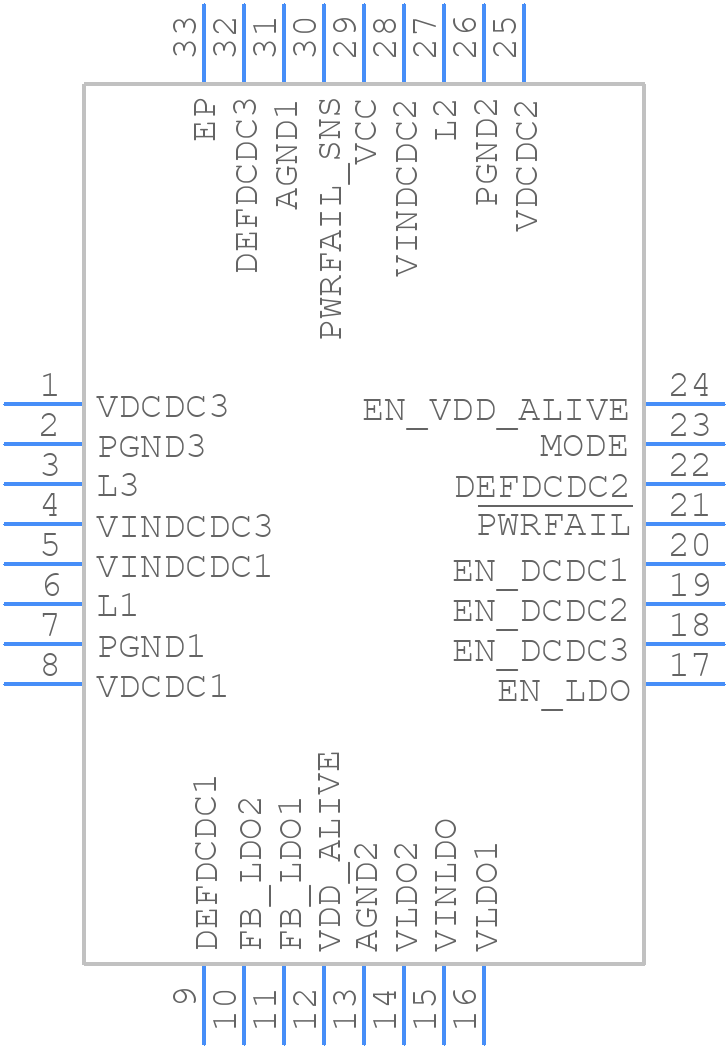

Use the download button to access the TPS650243QRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
