Texas Instruments provides a recommended layout and placement guide in the TPS65050RSMT datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website provides a layout checklist and a PCB thermal design guide to help ensure optimal performance.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, consider using a voltage reference IC, such as the TLV7031, to provide a stable reference voltage. Finally, minimize noise and ripple on the input and output lines.
The maximum output current capability of the TPS65050RSMT is 500mA per channel. However, the actual output current capability may be limited by the thermal performance of the PCB, the input voltage, and the output voltage setting. Be sure to check the thermal design and power dissipation calculations to ensure the device can deliver the required output current.
To ensure stability and reliability, follow the recommended operating conditions, including input voltage, output voltage, and output current. Ensure proper thermal design, including heat sinking and thermal vias. Additionally, consider implementing overvoltage protection, undervoltage lockout, and short-circuit protection to prevent damage to the device and surrounding components.
The TPS65050RSMT is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. Be sure to check the datasheet for thermal derating information and consider using thermal design techniques, such as heat sinking and thermal vias, to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65050RSMT Overview

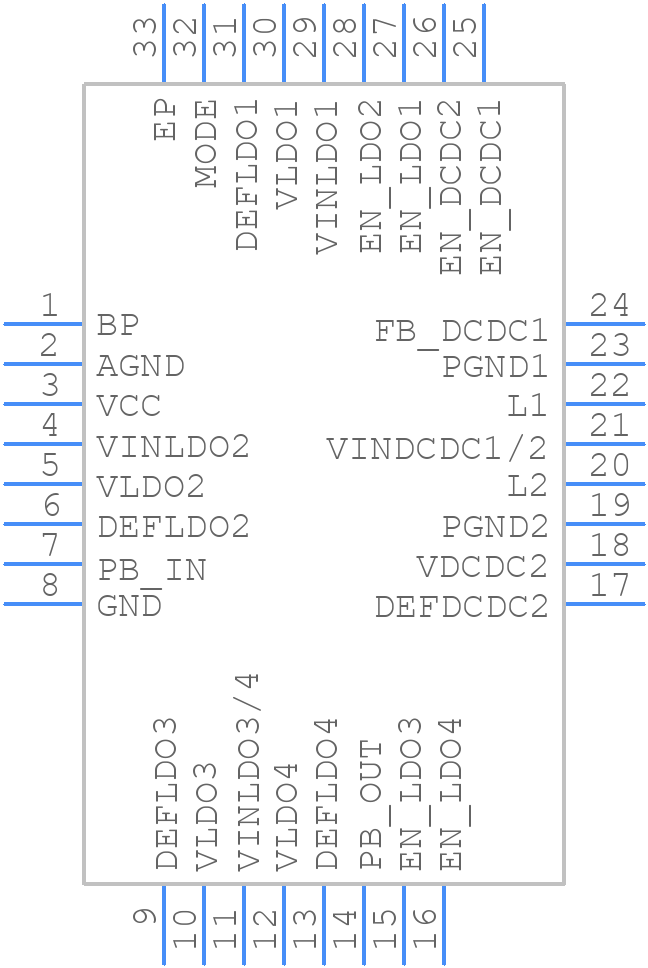

Use the download button to access the TPS65050RSMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
