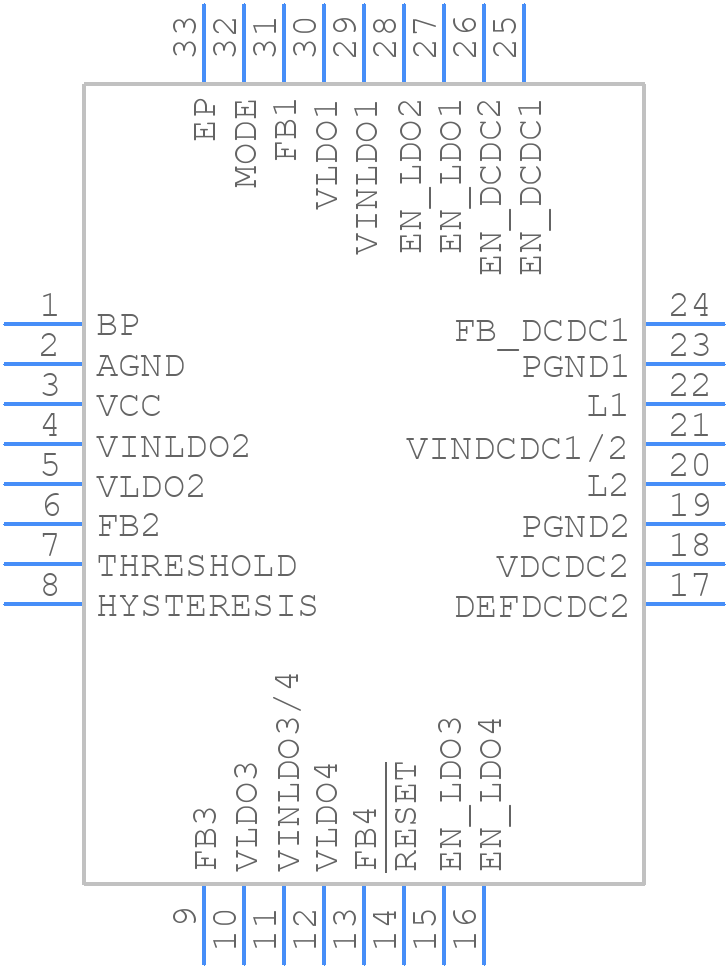

TPS65056RSMT - Texas Instruments

TPS65056RSMT Details

• Manufacturer Part Number:

  TPS65056RSMT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  32

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  VOLTAGE SUPERVISOR/RESET IC

• Input Voltage-Max:

  6.5 V

• Input Voltage-Min:

  1.5 V

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  6

• Number of Functions:

  1

• Number of Outputs:

  6

• Number of Terminals:

  32

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.6 A

• Output Voltage-Max:

  6 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.16SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  0.25 mA

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Switching Frequency-Max:

  2475 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +1.8V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
