TPS65072RSLT - Texas Instruments

Description: Single Chip Power Solution for Battery Powered Systems

Download TPS65072RSLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

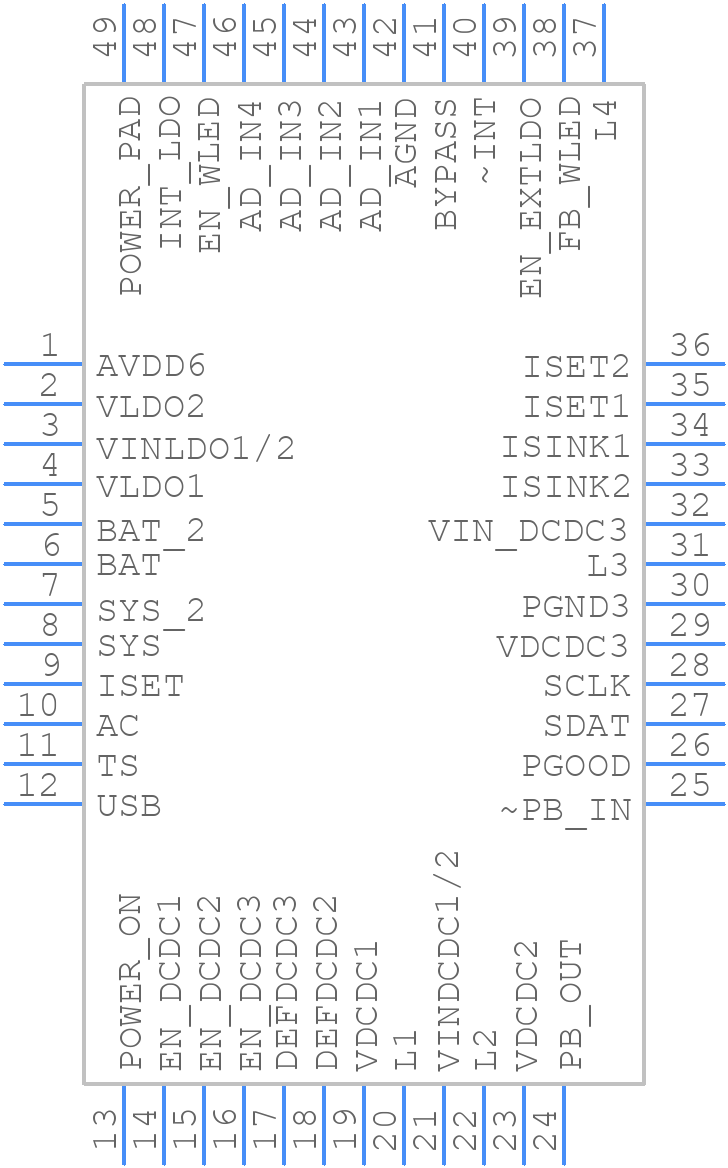

TPS65072RSLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65072RSLT - Texas Instruments PCB footprint - Other - Other - QFN40P600X600X100-49N
click to zoom
3D Models
TPS65072RSLT - Texas Instruments - 3D model - Other - QFN40P600X600X100-49N
click to zoom

TPS65072RSLT Details

  • Manufacturer Part Number:

    TPS65072RSLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6.3 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Outputs:

    5

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    19.2 V

  • Output Voltage-Min:

    0.725 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2250 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65072RSLT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS65072RSLT can be found in the Texas Instruments application note 'TPS65072RSLT Layout and Placement Guidelines' (SLVAE66). It provides guidance on component placement, routing, and thermal considerations to ensure optimal performance and reliability.
  • The TPS65072RSLT output voltage can be configured using the VOUT pin and an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2. The recommended values for R1 and R2 can be found in the datasheet or using the Texas Instruments Power Designer software.
  • The TPS65072RSLT can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
  • To ensure stability and reliability, it is recommended to follow the guidelines in the datasheet and application notes, including proper component selection, layout, and thermal management. Additionally, it is recommended to perform thorough testing and validation of the design to ensure it meets the required specifications and operating conditions.
  • The TPS65072RSLT is rated for operation up to 125°C, but it is recommended to derate the output current and voltage according to the thermal derating curves provided in the datasheet. Additionally, it is recommended to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPS65072RSLT Overview

Use the download button to access the TPS65072RSLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
