Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the output current, output voltage, and switching frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but you can also use online inductor selection tools or consult with a component supplier to find the right inductor for your specific application.
The maximum ambient temperature for the TPS650732RSLR is 85°C, but the device can operate up to 105°C with derating. It's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation.
Yes, the TPS650732RSLR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of your application.
Troubleshooting issues with the TPS650732RSLR typically involves checking the input voltage, output voltage, and current, as well as the device's thermal performance. Use an oscilloscope to check for switching noise, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS650732RSLR Overview

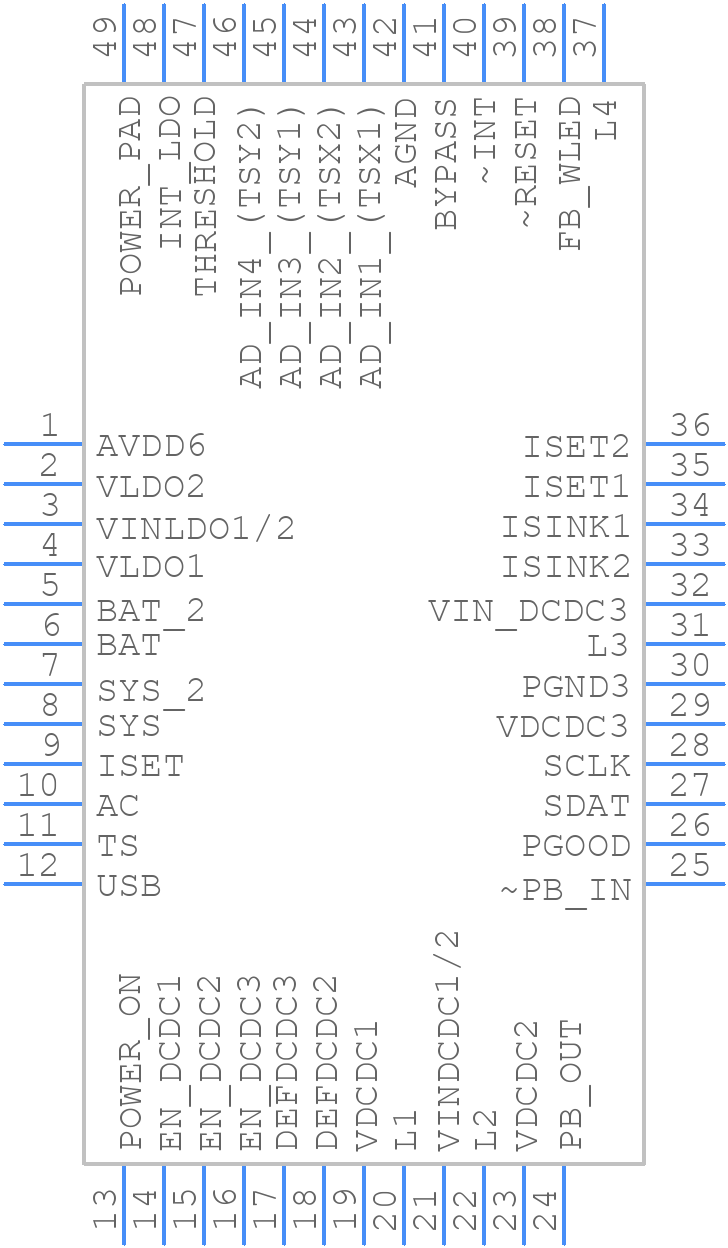

Use the download button to access the TPS650732RSLR schematic symbol, PCB footprint, and 3D model.
