Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stability, follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the maximum voltage rating of the internal LDO regulator, which is 6V. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation and prevent damage to the IC.
The TPS65123RGTR is rated for operation up to 125°C, but it's crucial to consider the thermal design and layout of the PCB to ensure proper heat dissipation. Additionally, the IC's performance and reliability may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for guidance on high-temperature operation.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended design. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65123RGTR Overview

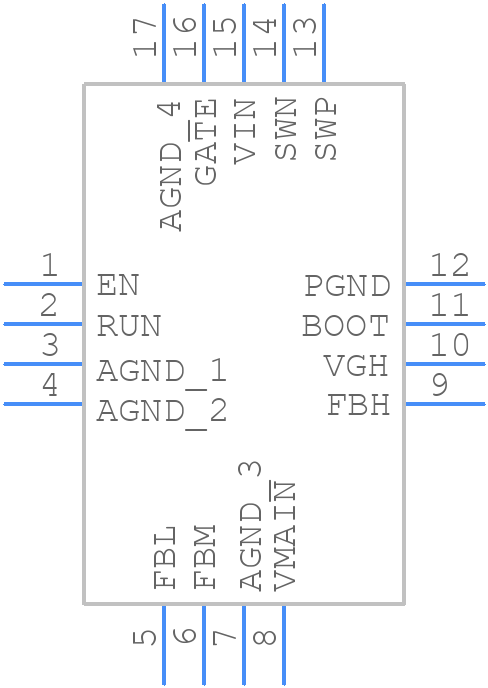

Use the download button to access the TPS65123RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
