A good PCB layout for the TPS65130RGET involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The TPS65130RGET can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS65130RGET is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended design. Use an oscilloscope to inspect the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65130RGET Overview

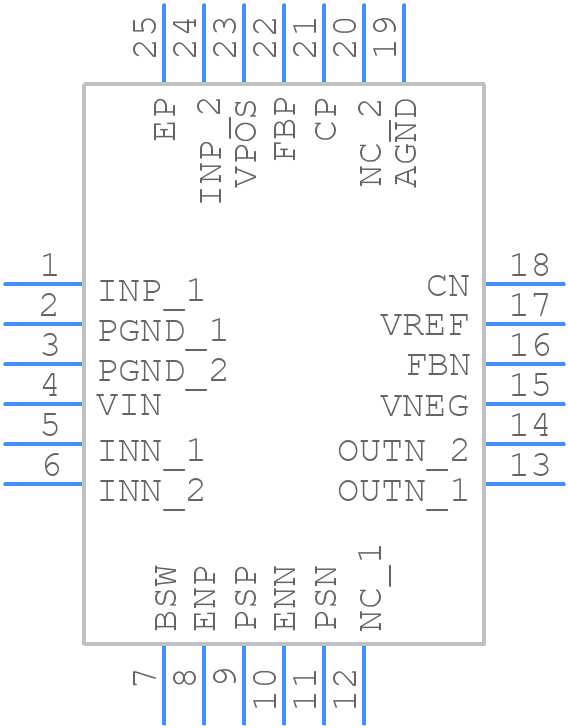

Use the download button to access the TPS65130RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
