TPS65130RGETG4 - Texas Instruments

Description: Conv DC-DC 2.7V to 5.5V Inv/Step Up Dual-Out -15V to -2V/3.2V to 15V 0.8A 24-Pin VQFN EP T/R

Download TPS65130RGETG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

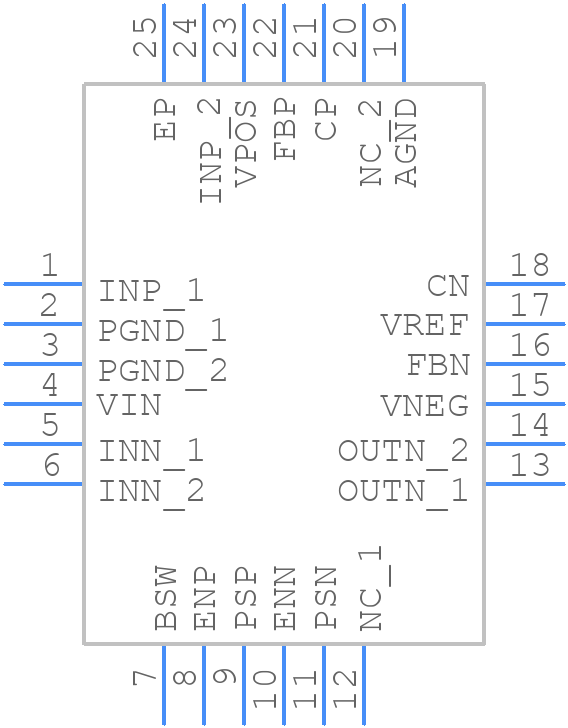

TPS65130RGETG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65130RGETG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
TPS65130RGETG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

TPS65130RGETG4 Details

  • Manufacturer Part Number:

    TPS65130RGETG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Negative Input Voltage-Max:

    -2 V

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.9 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    3.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65130RGETG4 Frequently Asked Questions (FAQs)

  • TI provides a recommended PCB layout in the datasheet (section 10.2) and in the TPS65130RGETG4 Evaluation Module documentation. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI provides a capacitor selection guide in the datasheet (section 7.3.1) and in the TPS65130RGETG4 Capacitor Selection Tool. It's recommended to use a low-ESR capacitor with a minimum capacitance of 10 μF.
  • The TPS65130RGETG4 has an absolute maximum input voltage rating of 18 V. However, the recommended operating input voltage range is 4.5 V to 15 V. Applying voltages above 15 V may reduce the device's reliability and lifespan.
  • The TPS65130RGETG4 has built-in OVP and UVP features. OVP is set to 12.6 V (typical) and UVP is set to 4.3 V (typical). These thresholds can be adjusted using external resistors (R_OVP and R_UVP) connected to the OVP and UVP pins, respectively.
  • The thermal derating curve is provided in the datasheet (section 10.1). The device's output current capability decreases as the junction temperature increases. It's essential to ensure proper thermal design and heat sinking to maintain the device's performance and reliability.
