Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the output current, switching frequency, and output voltage ripple requirements. Texas Instruments provides a list of recommended inductors in the datasheet, but you can also use online inductor selection tools or consult with an inductor manufacturer to find the right one for your application.
The TPS65132T6YFFT has an operating junction temperature range of -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
The TPS65132T6YFFT is an automotive-qualified device, but it's essential to review the device's AEC-Q100 qualification and to follow the guidelines for high-reliability applications, such as using a robust PCB design, selecting high-reliability components, and performing thorough testing and validation.
To troubleshoot issues with the TPS65132T6YFFT, follow a systematic approach, such as checking the input voltage, output voltage, and current, as well as the device's thermal performance. Use oscilloscopes and thermal imaging cameras to identify the root cause of the issue, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65132T6YFFT Overview

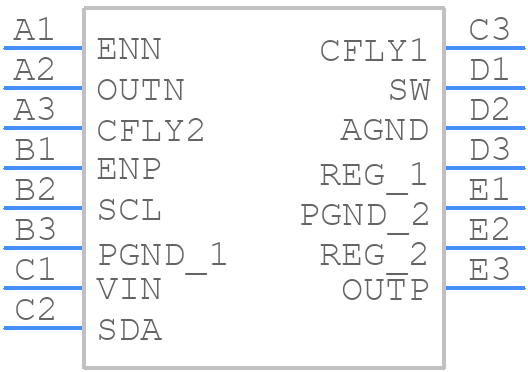

Use the download button to access the TPS65132T6YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
