The recommended layout and placement for the TPS65133DPDR involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The device should be placed near the power source, and the output voltage lines should be routed away from the input voltage lines to minimize noise coupling.
To ensure stability, the TPS65133DPDR requires a minimum output capacitance of 10uF, and the output voltage should be decoupled with a 10nF capacitor. Additionally, the input voltage should be decoupled with a 10uF capacitor, and the device should be operated within the recommended input voltage range.
The maximum ambient temperature range for the TPS65133DPDR is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
Yes, the TPS65133DPDR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and layout guidelines to ensure the device operates within its recommended specifications.
To troubleshoot issues with the TPS65133DPDR, start by verifying the input voltage and output voltage levels. Check for any signs of overheating, and ensure that the device is operated within its recommended specifications. Use an oscilloscope to check for any noise or oscillations on the output voltage line. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65133DPDR Overview

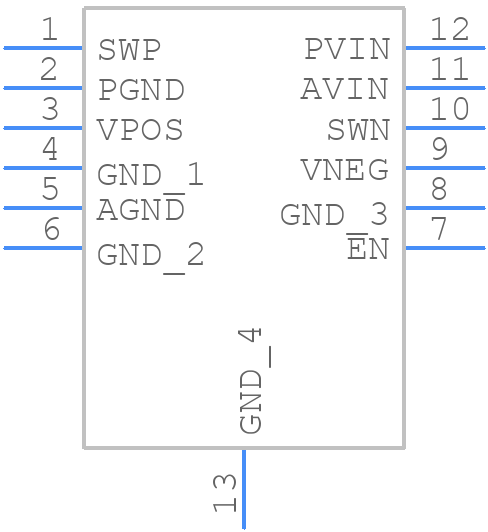

Use the download button to access the TPS65133DPDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Other Signal Circuits
