TPS65150RGERG4 - Texas Instruments

Description: LCD Drivers Compact LCD Bias Supply IC

Download TPS65150RGERG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

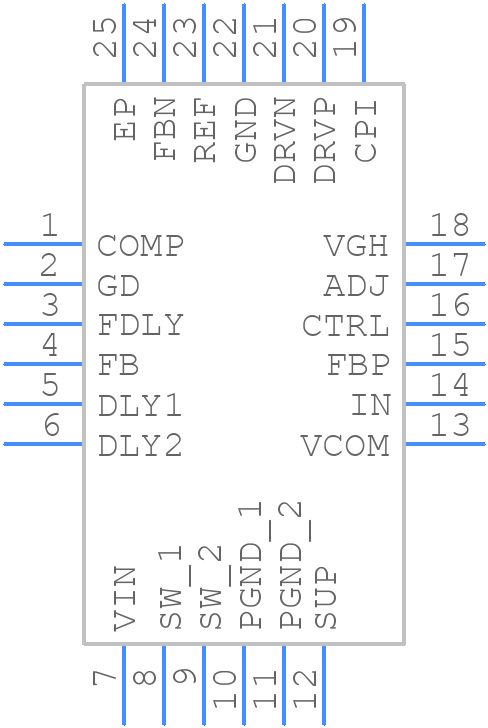

TPS65150RGERG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65150RGERG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
TPS65150RGERG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

TPS65150RGERG4 Details

  • Manufacturer Part Number:

    TPS65150RGERG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Negative Input Voltage-Max:

    -2 V

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    30 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.025 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65150RGERG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65150RGERG4 datasheet (Section 10.2) and in the TPS65150RGERG4 Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10 μF (Section 7.3.1 of the datasheet). You can use the TI Power Stage Designer tool to help select the optimal output capacitor for your specific application.
  • The TPS65150RGERG4 has an absolute maximum input voltage rating of 18 V (Section 6.1 of the datasheet). However, the recommended operating input voltage range is 4.5 V to 15 V. Exceeding the absolute maximum rating can damage the device.
  • The TPS65150RGERG4 has a built-in OCP and SCP feature. You can set the OCP threshold using the OCSET pin (Section 7.3.4 of the datasheet). For SCP, the device will automatically shut down in case of a short circuit. You can also use external components to implement additional protection mechanisms if needed.
  • The thermal derating curve for the TPS65150RGERG4 is provided in the datasheet (Figure 10-1). It shows the maximum output current vs. ambient temperature. You can use this curve to determine the maximum output current for your specific application based on the operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65150RGERG4 Overview

Use the download button to access the TPS65150RGERG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
