A good PCB layout for the TPS65178ARSLR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
The TPS65178ARSLR can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS65178ARSLR is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation.
To troubleshoot issues with the TPS65178ARSLR, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range and that the output voltage is within the desired range. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes for guidance or contact Texas Instruments support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65178ARSLR Overview

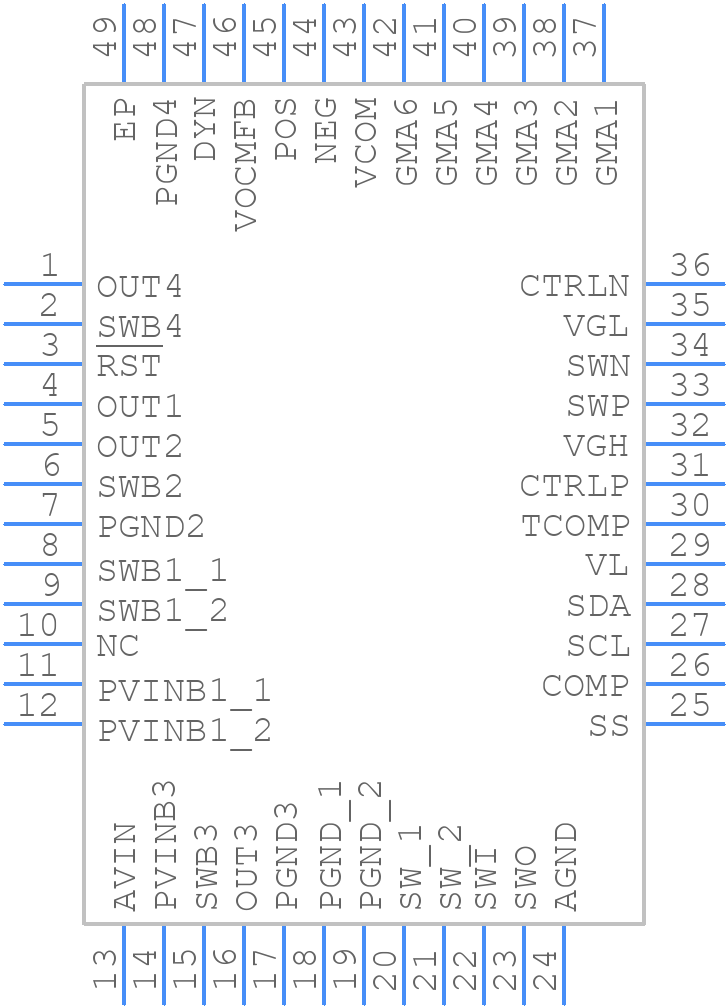

Use the download button to access the TPS65178ARSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
