DETECTION THRESHOLD VOLTAGE IS 6 VOLT; ALSO OPERATES IN BATTERY INPUT VOLTAGE FROM 0 TO 5.5 VOLT
Adjustable Threshold:
YES
Analog IC - Other Type:
INTEGRATED POWER MANAGEMENT UNIT
Input Voltage-Max:
5.8 V
Input Voltage-Min:
2.75 V
JESD-30 Code:
S-PQCC-N48
JESD-609 Code:
e4
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Outputs:
9
Number of Terminals:
48
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.2 A
Output Voltage-Max:
3.3 V
Output Voltage-Min:
0.9 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.24SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
2000 mA
Supply Voltage-Max (Vsup):
5.8 V
Supply Voltage-Min (Vsup):
2.75 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switching Frequency-Max:
2550 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+1.5V
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
TPS65217DRSLT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS65217DRSLT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the TPS65217DRSLT depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 4.7uF for the input capacitor and 10uF for the output capacitor.
The TPS65217DRSLT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. In general, the device can operate up to 85°C ambient temperature with a maximum power dissipation of 2.5W.
The TPS65217DRSLT has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, and vice versa.
Yes, the TPS65217DRSLT is a high-reliability device that meets the requirements of various industries, including automotive, industrial, and medical. It is manufactured using a high-reliability process and is qualified to various standards, including AEC-Q100 and IEC 60601-1.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65217DRSLT Overview

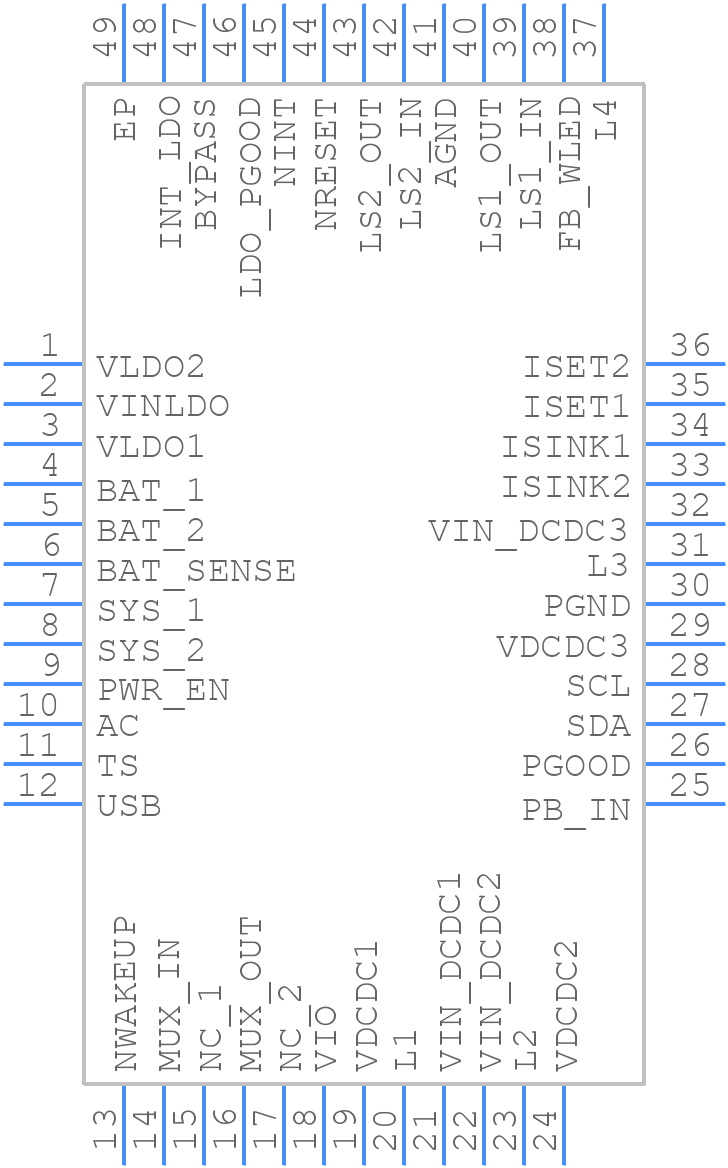

Use the download button to access the TPS65217DRSLT schematic symbol, PCB footprint, and 3D model.
