Texas Instruments provides a recommended PCB layout in the TPS6521845RSLT datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS65218 Layout Guidelines' (SLVAE04) for optimal performance and thermal management.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the TI application note 'Output Capacitor Selection for Switching Regulators' (SLTA055) for more information.
The TPS6521845RSLT has an absolute maximum input voltage rating of 18V, but the recommended maximum input voltage is 15V to ensure reliable operation and minimize stress on the device.
The TPS6521845RSLT is rated for operation up to 105°C, but the device's performance and reliability may degrade at high temperatures. TI recommends derating the output current and using thermal management techniques, such as heat sinks or thermal pads, to ensure reliable operation in high-temperature environments.
TI provides a troubleshooting guide in the TPS6521845RSLT datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. Additionally, TI's Power Management Lab (PML) provides online resources and tools to help troubleshoot and optimize switching regulator designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6521845RSLT Overview

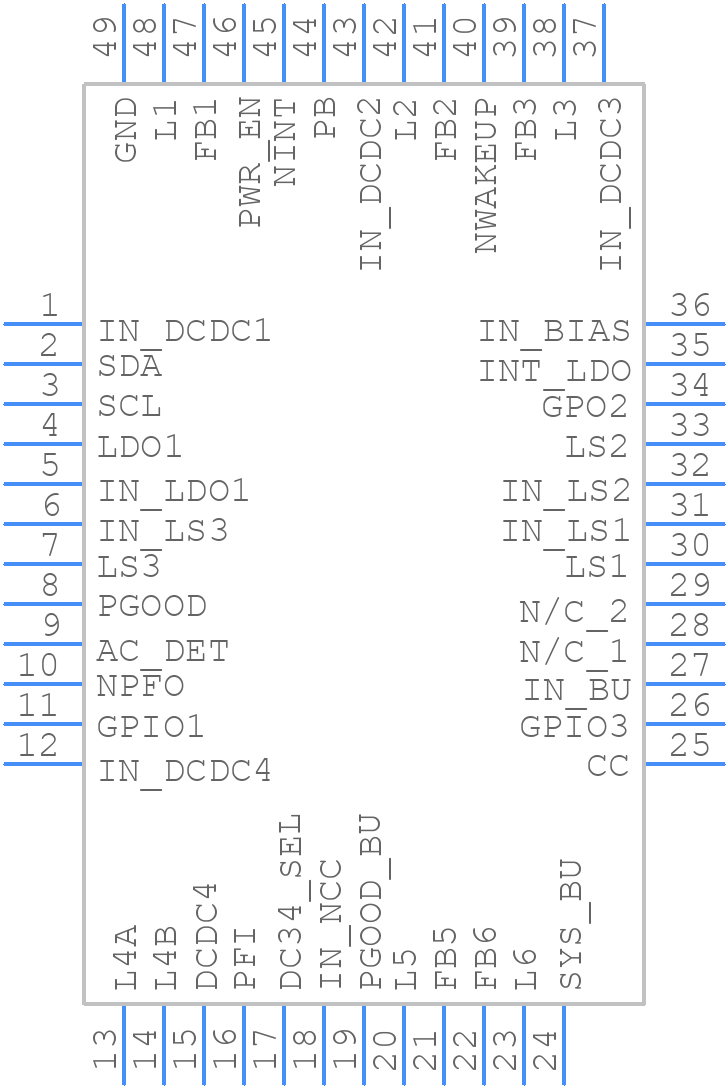

Use the download button to access the TPS6521845RSLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
