TPS65218B1RSLR - Texas Instruments

Description: Power Management Specialised - PMIC Power Management ARM Cortex-A8/A9 SoCs

Download TPS65218B1RSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

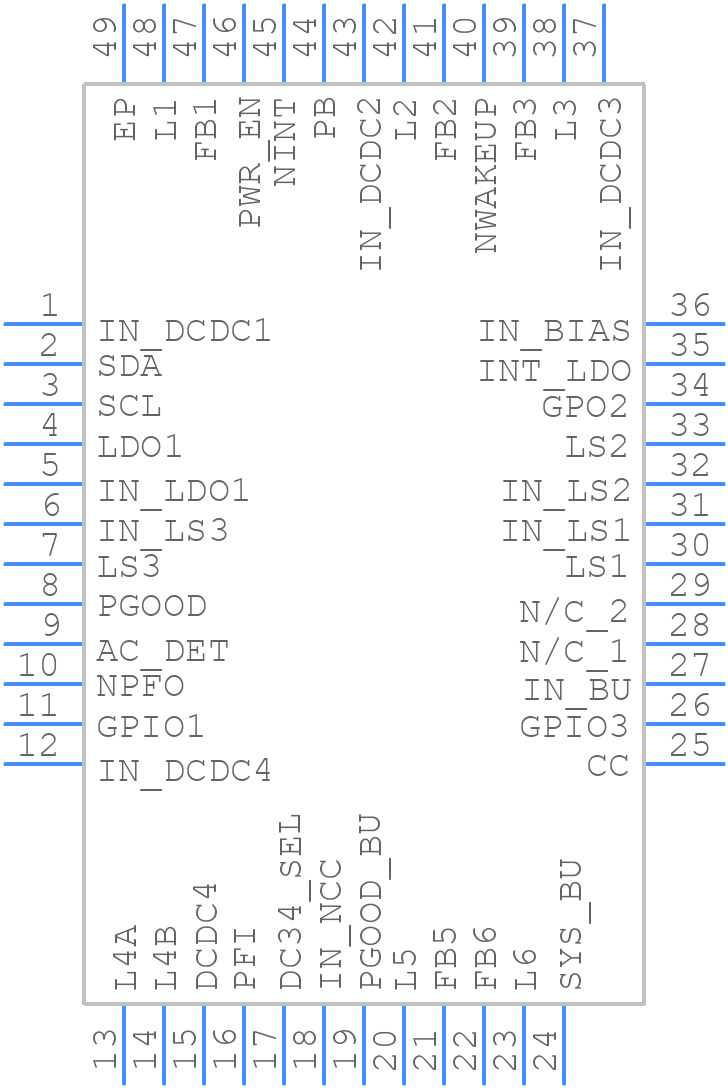

TPS65218B1RSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65218B1RSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom
3D Models
TPS65218B1RSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom

TPS65218B1RSLR Details

  • Manufacturer Part Number:

    TPS65218B1RSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    3.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65218B1RSLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65218B1RSLR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The output voltage of the TPS65218B1RSLR can be set using the FB pin and an external resistor divider network. The output voltage range is 0.9V to 3.3V. Choose a voltage that meets the requirements of your load, and use the datasheet equations to calculate the required resistor values.
  • The TPS65218B1RSLR can handle input voltages up to 18V, but the recommended maximum input voltage is 15V to ensure reliable operation and minimize power losses.
  • To ensure stability, follow the datasheet guidelines for output capacitance, ESR, and output voltage ripple. Also, use a sufficient input capacitance and a low-ESR output capacitor. TI provides a stability analysis tool to help with this.
  • The TPS65218B1RSLR can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. Check the datasheet for the safe operating area (SOA) curves to determine the maximum output current for your specific application.
