Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow additional guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, select ones with a low ESR and a high capacitance value. The datasheet provides guidelines for capacitor selection, but it's crucial to consider the specific application requirements and operating conditions.
The TPS6521902RSMR has an operating junction temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to perform thermal analysis and consider heat sinking or cooling mechanisms to ensure reliable operation.
Yes, the TPS6521902RSMR is AEC-Q100 qualified, making it suitable for automotive applications. Additionally, it's manufactured using a high-reliability process, but it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
Start by verifying the PCB layout, component selection, and soldering quality. Check the input voltage, output load, and ambient temperature. Use oscilloscopes and thermal imaging cameras to identify potential issues. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6521902RSMR Overview

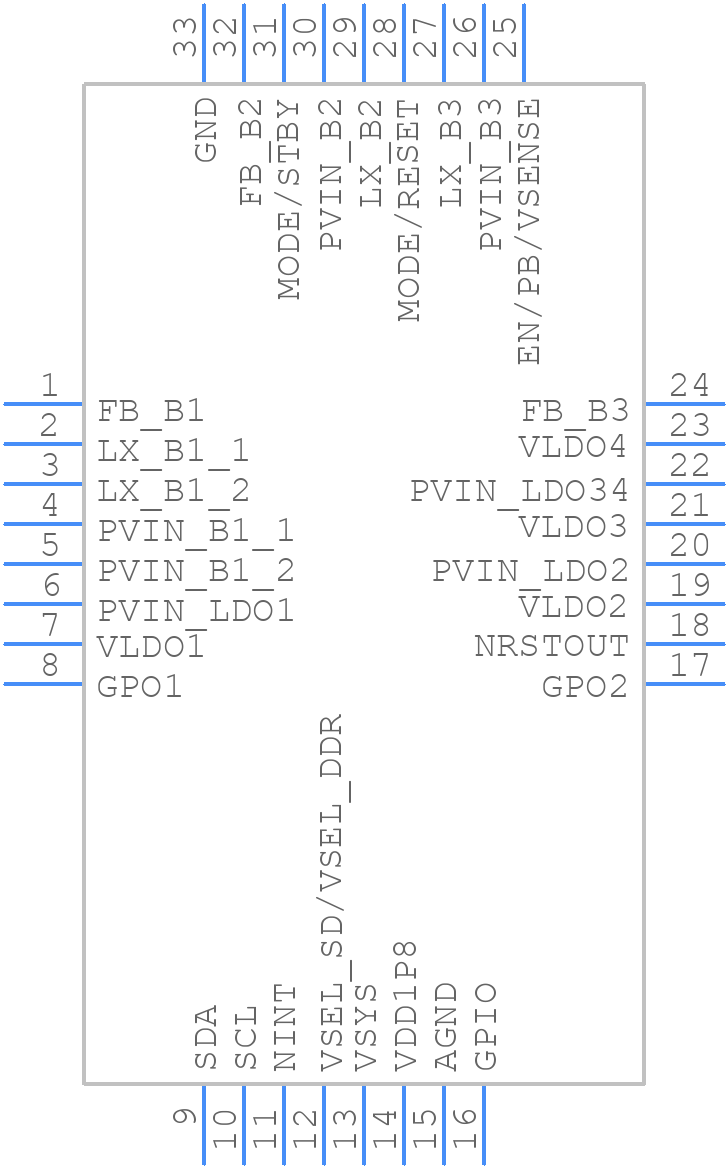

Use the download button to access the TPS6521902RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
