Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The datasheet provides guidelines for capacitor selection, but it's crucial to consider factors like capacitor type, value, and ESR. A general rule of thumb is to use low-ESR ceramic capacitors with a value of 10uF to 22uF for the input and output. However, the optimal capacitor selection may vary depending on the specific application and operating conditions.
The TPS6521903RHBR has an absolute maximum input voltage rating of 18V, but the recommended operating input voltage range is 6.5V to 14V. Exceeding the maximum input voltage can damage the device or affect its performance.
The TPS6521903RHBR has a maximum junction temperature rating of 150°C. To ensure thermal operation within limits, consider factors like PCB thermal design, airflow, and heat sinking. The datasheet provides thermal resistance and power dissipation information to help with thermal design.
The EN (enable) pin is used to enable or disable the TPS6521903RHBR. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6521903RHBR Overview

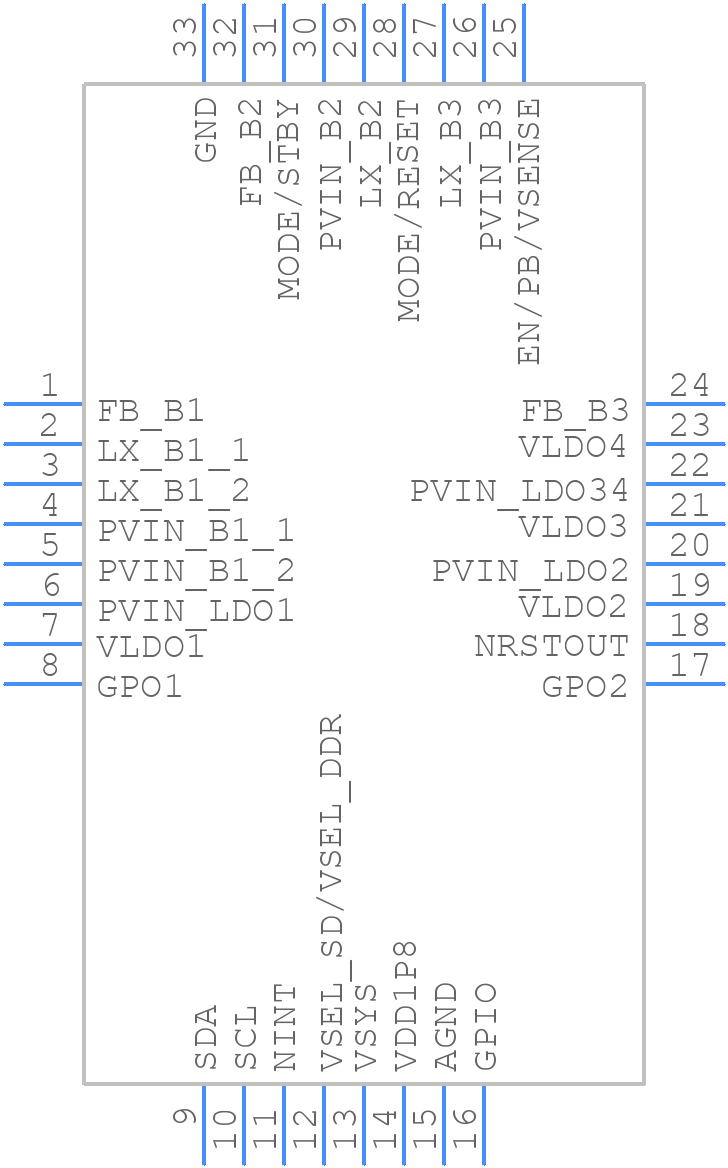

Use the download button to access the TPS6521903RHBR schematic symbol, PCB footprint, and 3D model.
