TPS6521908RHBR - Texas Instruments

Description: Power Management Specialized - PMIC Integrated power man agement (PMIC) for

Download TPS6521908RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

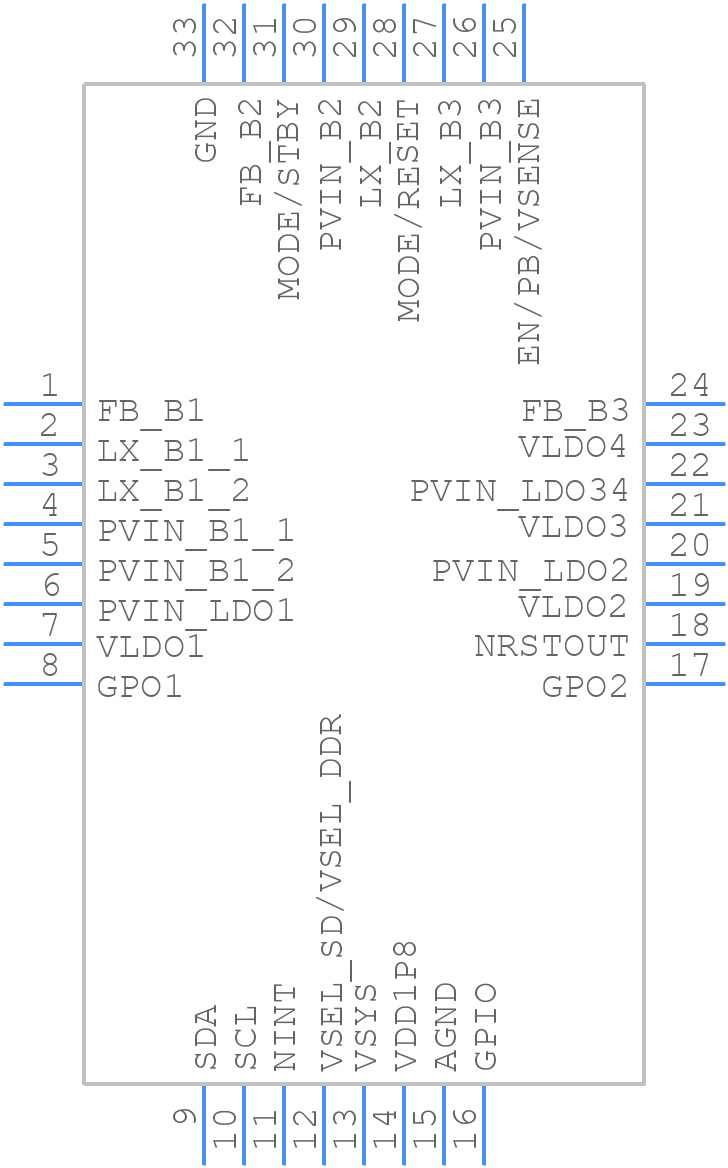

TPS6521908RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS6521908RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TPS6521908RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TPS6521908RHBR Details

  • Manufacturer Part Number:

    TPS6521908RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Outputs:

    7

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    3.4 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.43 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS6521908RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS6521908RHBR datasheet (Section 10.2) and in the application note 'TPS6521908RHBR Layout and Placement Guidelines' (SLUU444). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall system reliability.
  • The TPS6521908RHBR is a configurable power management IC, and the output voltage can be set using external resistors (R1 and R2) connected to the FB pin. Use the voltage calculation formula provided in the datasheet (Section 7.3.1) to determine the correct resistor values for your desired output voltage.
  • The TPS6521908RHBR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 15V. Exceeding the absolute maximum rating can damage the device.
  • To ensure stability, follow the guidelines for output capacitor selection (Section 7.3.2 in the datasheet), and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, use a minimum of 10uF ceramic capacitor at the input (VIN pin) to filter out noise and prevent oscillation.
  • The TPS6521908RHBR has a junction temperature rating of 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal design and heat sinking to keep the junction temperature below 125°C for optimal performance and reliability.
