Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS65219 20-V, 2-A, 2-Channel, Low-IQ, Low-Noise, Low-Dropout Linear Regulator' (SLVAE04) for optimal performance.
To ensure stability, it's essential to follow the recommended output capacitor selection and placement guidelines in the datasheet. Additionally, the input capacitor should be placed close to the VIN pin, and the output capacitor should be placed close to the VOUT pin.
The TPS6521920WRHBRQ1 can handle a maximum input voltage of 20 V. However, it's recommended to operate the device within the recommended input voltage range of 2.7 V to 18 V for optimal performance and reliability.
The TPS6521920WRHBRQ1 is rated for operation up to 125°C junction temperature. However, it's essential to follow the recommended thermal design and layout guidelines to ensure reliable operation in high-temperature environments.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, input voltage errors, and thermal shutdown. Additionally, TI's support team can provide further assistance and guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6521920WRHBRQ1 Overview

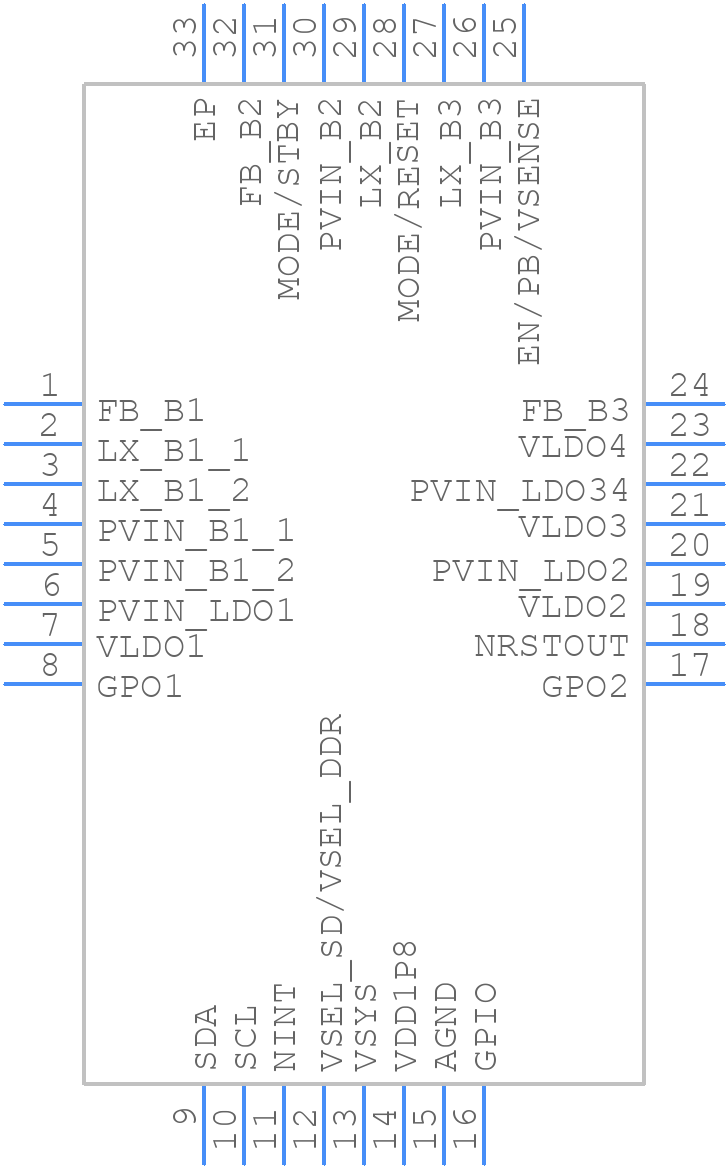

Use the download button to access the TPS6521920WRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
