Description:Power Management Specialized - PMIC 2.5-V to 5.5-V PMIC with three step-down DC/DC converters & four LDOs for Sitara AM64x processor 32-VQFN -40 to 125
Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The datasheet provides guidelines for capacitor selection, but it's crucial to consider factors like capacitor type (e.g., ceramic, electrolytic, or tantalum), capacitance value, and ESR (Equivalent Series Resistance) to ensure stability and optimal performance. TI also offers a capacitor selection tool to help with this process.
While the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the voltage rating of the input capacitor and the device's internal voltage regulator, which can affect the overall input voltage tolerance. It's recommended to stay within the specified input voltage range to ensure reliable operation.
The TPS6522053RHBR has a fixed output voltage option, but you can also use an external resistor divider network to set a custom output voltage. The datasheet provides a formula to calculate the required resistor values, and TI also offers a voltage calculator tool to simplify the process.
The TPS6522053RHBR has a thermal pad that must be connected to a solid ground plane or a heat sink to ensure proper heat dissipation. The datasheet provides thermal resistance and junction-to-ambient temperature ratings, which can help you estimate the device's thermal performance. It's essential to follow good thermal design practices, such as using a heat sink or thermal vias, to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6522053RHBR Overview

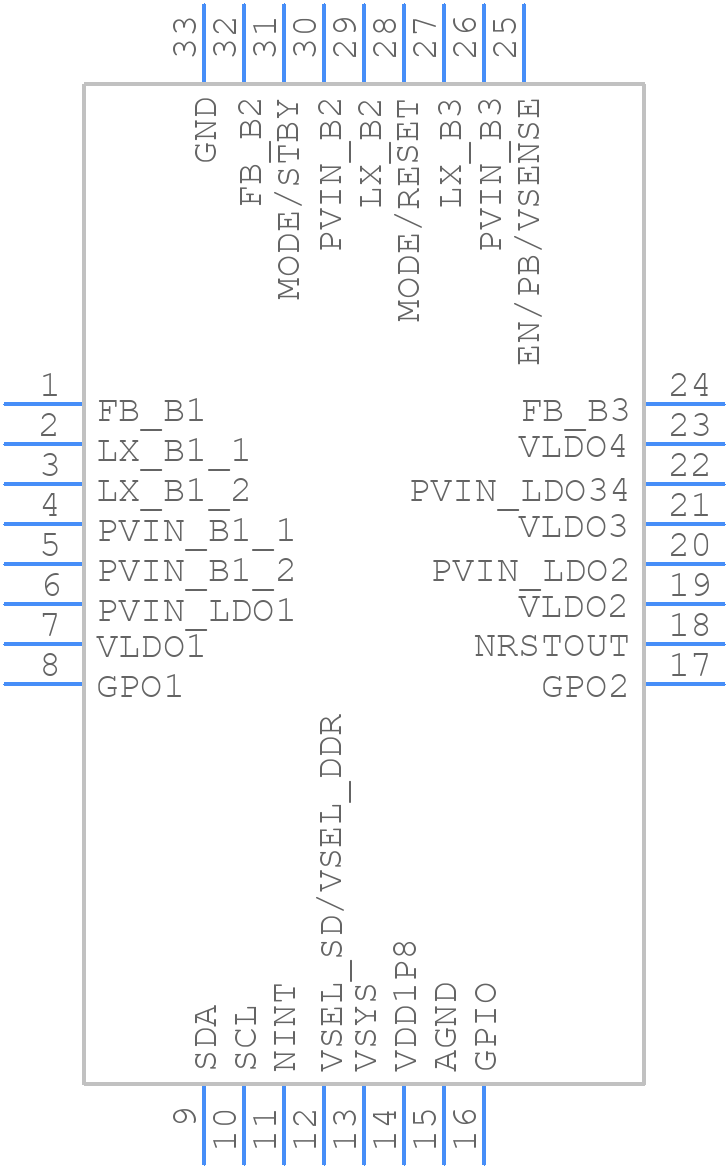

Use the download button to access the TPS6522053RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
