Texas Instruments provides a recommended layout and placement guide in the TPS65233-1RTER datasheet, application notes, and evaluation module documentation. It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and signal integrity.
The TPS65233-1RTER is a highly configurable device. To select the correct output voltage and configuration, refer to the datasheet and application notes, which provide detailed information on voltage settings, sequencing, and configuration options. You can also use Texas Instruments' online tools, such as the Power Designer or WEBENCH, to help with the selection process.
The TPS65233-1RTER has a thermal pad that must be connected to a heat sink or a thermal plane on the PCB. Ensure proper heat dissipation by following the recommended thermal design guidelines in the datasheet and application notes. This includes using a sufficient heat sink, thermal interface material, and PCB thermal design considerations.
To troubleshoot and debug issues with the TPS65233-1RTER, refer to the datasheet, application notes, and Texas Instruments' troubleshooting guides. Use oscilloscopes, logic analyzers, and other debugging tools to identify and isolate issues. Additionally, consult with Texas Instruments' support resources, such as the E2E forum, and seek guidance from experienced engineers.
The TPS65233-1RTER is designed to meet EMI and EMC regulatory standards. To ensure compliance, follow the recommended layout and design guidelines in the datasheet and application notes. Additionally, consult with Texas Instruments' EMI and EMC resources, such as application notes and design guides, and perform thorough testing and certification procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65233-1RTER Overview

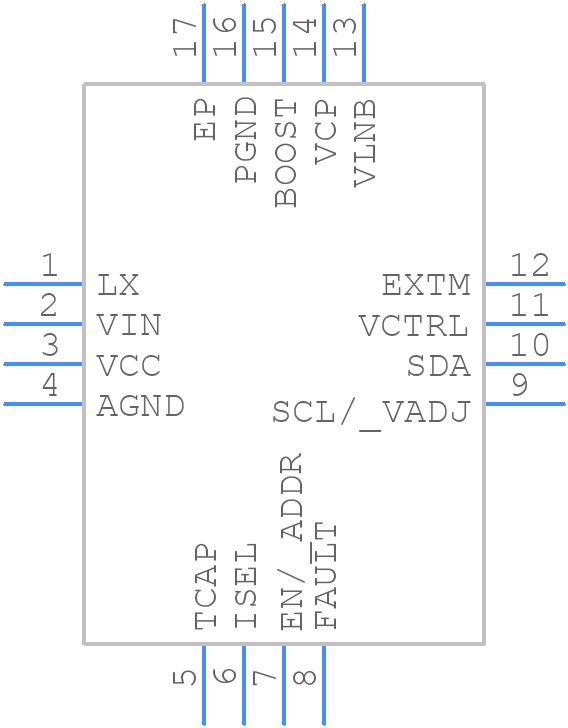

Use the download button to access the TPS65233-1RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
