TPS65235-1RUKR - Texas Instruments

Description: LNB voltage regulator with I2C interface in FCCM mode

Download TPS65235-1RUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

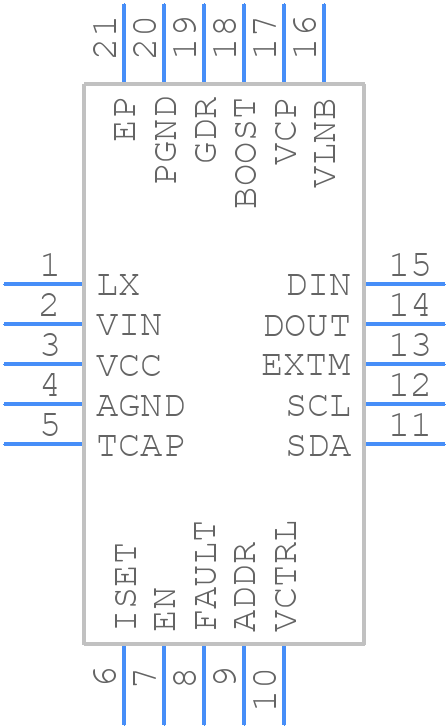

TPS65235-1RUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65235-1RUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPS65235-1RUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPS65235-1RUKR Details

  • Manufacturer Part Number:

    TPS65235-1RUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    11 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65235-1RUKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65235-1RUKR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • When choosing output capacitors for the TPS65235-1RUKR, consider the output voltage, output current, and ripple requirements. A good starting point is to use ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 1.5 times the output voltage. The ESR of the capacitor should be low enough to minimize voltage ripple.
  • The TPS65235-1RUKR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS65235-1RUKR can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet.
  • The thermal derating curve for the TPS65235-1RUKR is not explicitly provided in the datasheet, but it can be estimated based on the package thermal resistance and the maximum junction temperature. As a general rule, the device should be derated by 1% per degree Celsius above 25°C.
