TPS65235-3RUKR - Texas Instruments

Description: LNB voltage regulator with I2C interface

Download TPS65235-3RUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

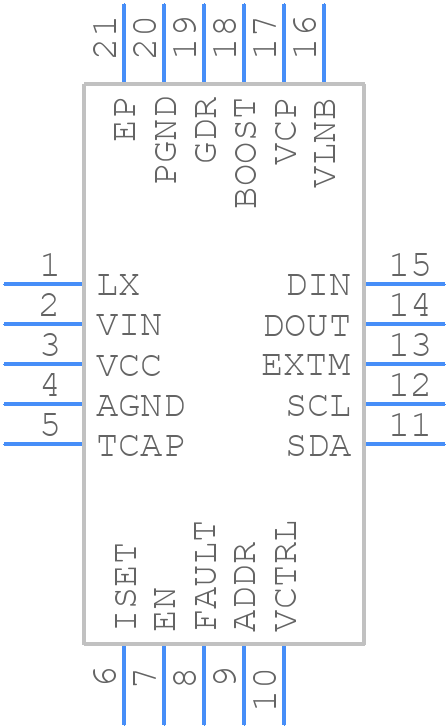

Symbol
TPS65235-3RUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65235-3RUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPS65235-3RUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPS65235-3RUKR Details

  • Manufacturer Part Number:

    TPS65235-3RUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-12-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    18.4 V

  • Output Voltage-Min:

    13.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1134 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65235-3RUKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65235-3RUKR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output capacitors should be chosen based on the output voltage and current requirements. A general rule of thumb is to use ceramic capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the output voltage. The ESR (Equivalent Series Resistance) of the capacitor should be low, typically less than 10mΩ.
  • The TPS65235-3RUKR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS65235-3RUKR can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet.
  • The thermal derating curve for the TPS65235-3RUKR is provided in the datasheet. It shows the maximum output current that the device can handle at different ambient temperatures. The curve is based on a junction temperature of 150°C and a maximum operating temperature of 125°C.
