TPS65235RUKT - Texas Instruments

Description: LNB Voltage Regulator with I2C Interface

Download TPS65235RUKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

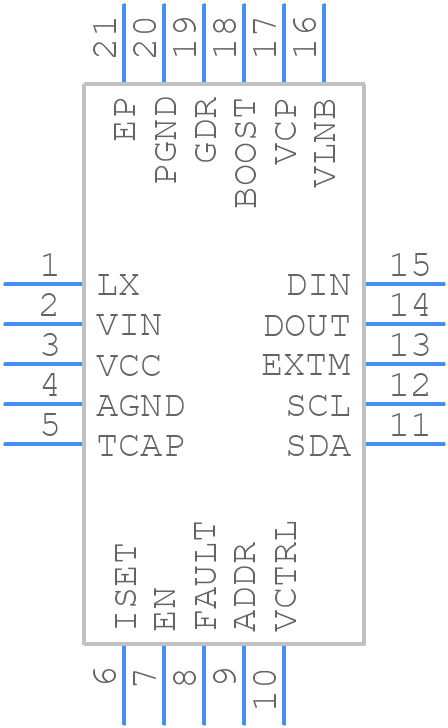

TPS65235RUKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65235RUKT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK0020B
click to zoom
3D Models
TPS65235RUKT - Texas Instruments - 3D model - Quad Flat No-Lead - RUK0020B
click to zoom

TPS65235RUKT Details

  • Manufacturer Part Number:

    TPS65235RUKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.65 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    11 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65235RUKT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65235RUKT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The output voltage of the TPS65235RUKT can be set using the FB pin and an external resistor divider network. The output voltage range is 0.9V to 3.3V. Choose a voltage that meets the requirements of your load, and use the datasheet equations to calculate the resistor values.
  • The TPS65235RUKT has a maximum input voltage rating of 5.5V. Exceeding this voltage can damage the device. Ensure that the input voltage is within the recommended range to ensure reliable operation.
  • To ensure stability, follow the datasheet guidelines for output capacitance, ESR, and output voltage ripple. Also, ensure that the input capacitance is sufficient and the PCB layout is well-designed to minimize noise and parasitic inductance.
  • The TPS65235RUKT can deliver up to 3A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Ensure that the device is operated within its recommended operating conditions to avoid overheating or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65235RUKT Overview

Use the download button to access the TPS65235RUKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
