TPS65252RHDT - Texas Instruments

Description: 4.5V to 16V input, 3A/2A output dual buck converter with an USB switch

Download TPS65252RHDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

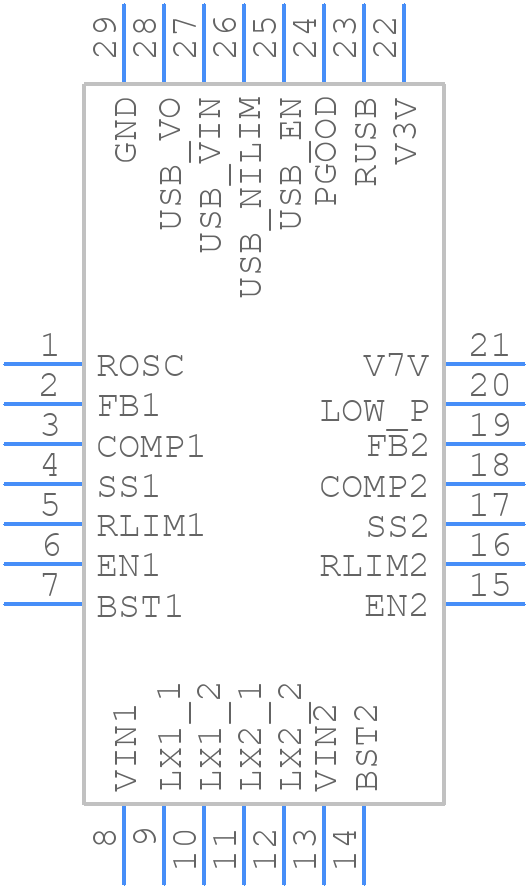

Symbol
TPS65252RHDT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65252RHDT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD (S-PVQFN-N28)_2021
click to zoom
3D Models
TPS65252RHDT - Texas Instruments - 3D model - Quad Flat No-Lead - RHD (S-PVQFN-N28)_2021
click to zoom

TPS65252RHDT Details

  • Manufacturer Part Number:

    TPS65252RHDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65252RHDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65252RHDT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65252RHDT can be set using the FB pin. The recommended output voltage range is 0.9V to 3.3V. Choose an output voltage that meets the requirements of your load, taking into account the voltage drop across the output capacitor and the maximum current rating of the device.
  • The TPS65252RHDT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • To ensure the stability of the output voltage, use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. The recommended output capacitor value is 10uF to 22uF. Also, make sure the output voltage is within the recommended range and the input voltage is stable.
  • The TPS65252RHDT can deliver up to 2A of output current, but the maximum output current depends on the input voltage, output voltage, and ambient temperature. It's recommended to derate the output current at high temperatures and high input voltages.
