A good PCB layout for the TPS65261-1RHBT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The output voltage of the TPS65261-1RHBT can be adjusted using the FB pin. You can use the formula VOUT = 0.8V x (R1/R2 + 1) to calculate the output voltage, where R1 and R2 are the resistors connected to the FB pin. Choose a voltage that meets your application's requirements, taking into account the input voltage, output current, and power dissipation.
The TPS65261-1RHBT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power dissipation.
To ensure the TPS65261-1RHBT operates within its thermal limits, you should provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. You should also monitor the junction temperature (TJ) and adjust the output current or input voltage accordingly to prevent overheating.
The TPS65261-1RHBT is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, you should take precautions such as reducing the output current, increasing the heat sinking, and monitoring the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65261-1RHBT Overview

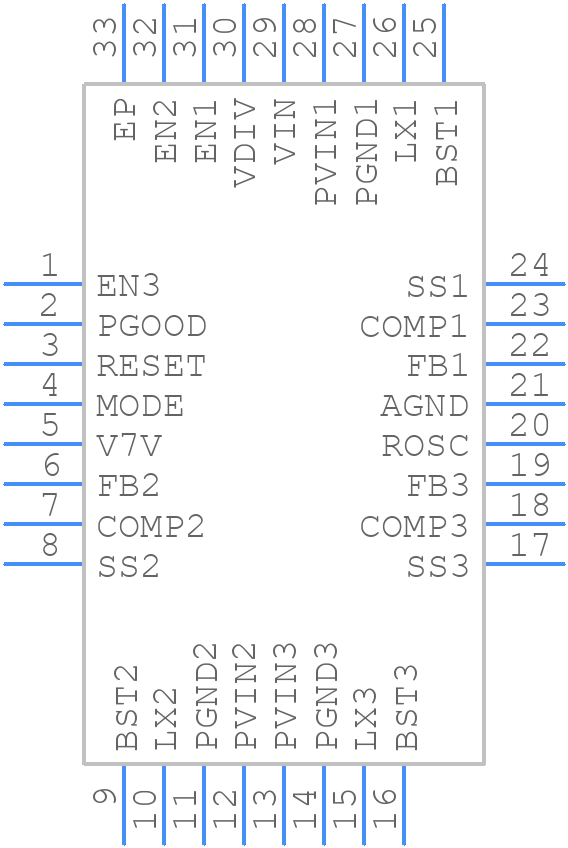

Use the download button to access the TPS65261-1RHBT schematic symbol, PCB footprint, and 3D model.
