TPS65261RHBR - Texas Instruments

Description: 4.5V to 18V Input Voltage, 3A/2A/2A Output Current Triple Synchronous Buck Converter

Download TPS65261RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

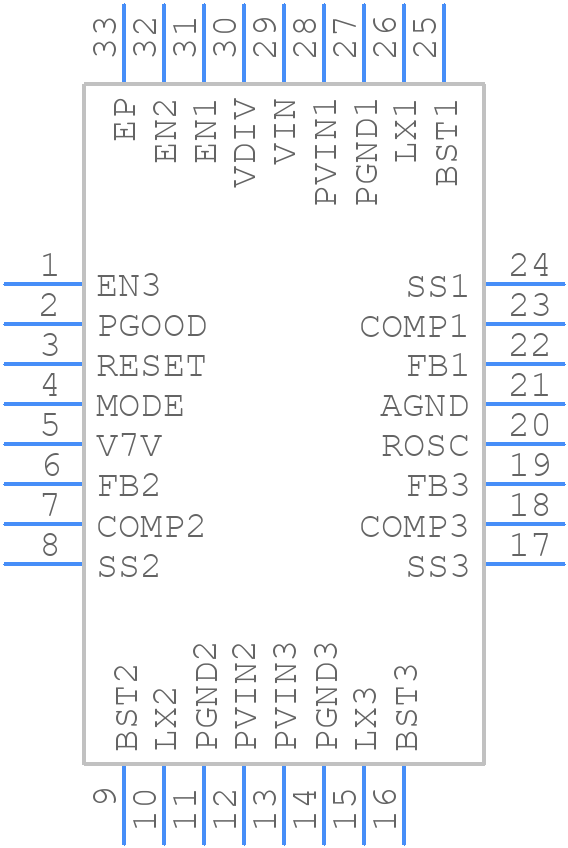

TPS65261RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65261RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFN-33
click to zoom
3D Models
TPS65261RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - LQFN-33
click to zoom

TPS65261RHBR Details

  • Manufacturer Part Number:

    TPS65261RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65261RHBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65261RHBR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65261RHBR can be set using the FB pin. The recommended output voltage range is 0.9V to 3.3V. To choose the right output voltage, consider the voltage requirements of your load, the input voltage range, and the desired efficiency.
  • The TPS65261RHBR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage during startup and shutdown, use a soft-start circuit to limit the inrush current and prevent voltage overshoot. You can also use a capacitor on the EN pin to slow down the startup time.
  • The TPS65261RHBR can deliver up to 3A of output current, but the actual output current depends on the input voltage, output voltage, and thermal conditions. Make sure to check the thermal derating curves in the datasheet to ensure reliable operation.
