TPS65265RHBR - Texas Instruments

Description: Conv DC-DC 4.5V to 17V Step Down Triple-Out 5A/3A/2A 32-Pin VQFN EP T/R

Download TPS65265RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

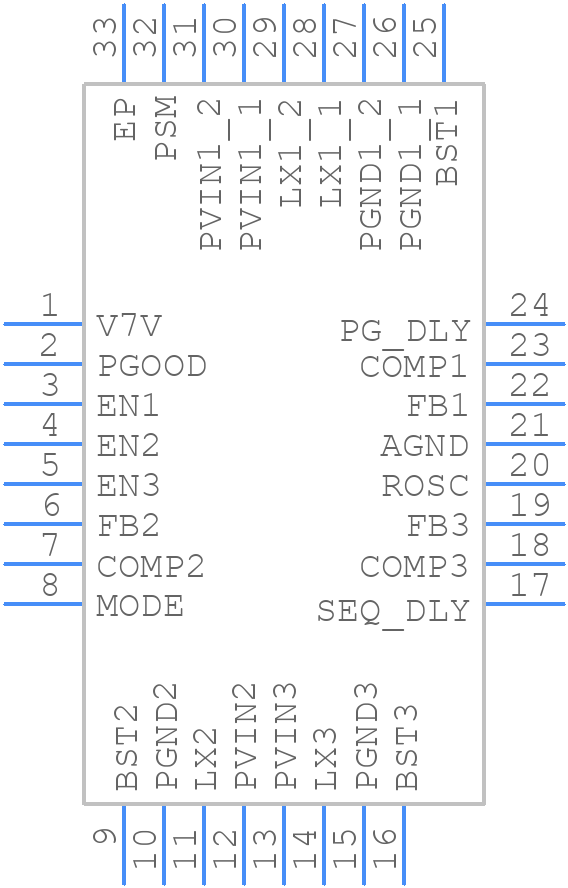

TPS65265RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65265RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E 2021
click to zoom
3D Models
TPS65265RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E 2021
click to zoom

TPS65265RHBR Details

  • Manufacturer Part Number:

    TPS65265RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT CURRENT OF BUCK 2,3 IS 6.65, 4.45A

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65265RHBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65265RHBR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The output voltage of the TPS65265RHBR can be set using the VID pins. TI provides a voltage code table in the datasheet to help select the desired output voltage. You can also use TI's online voltage regulator calculator tool to determine the correct resistor values for your desired output voltage.
  • The TPS65265RHBR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, use a sufficient output capacitor with a low ESR value, and avoid using capacitors with high ESL values.
  • The TPS65265RHBR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to follow the thermal design guidelines in the datasheet and consider using thermal management techniques such as heat sinks or thermal interfaces.
