TPS65266RHBT - Texas Instruments

Description: 2.7V to 6.5V Input Voltage, 3A/2A/2A Output Current Synchronous Buck Converters

Download TPS65266RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

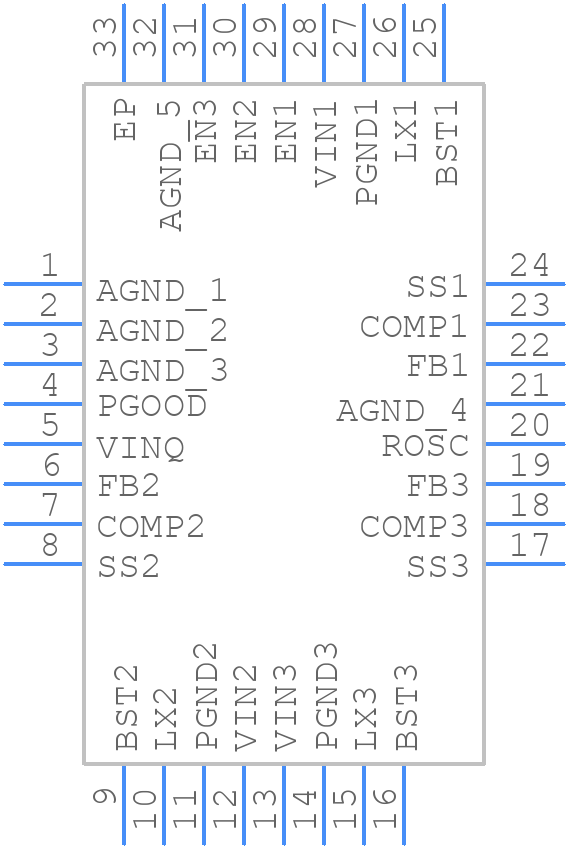

TPS65266RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65266RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E-4
click to zoom
3D Models
TPS65266RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E-4
click to zoom

TPS65266RHBT Details

  • Manufacturer Part Number:

    TPS65266RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PEAK CURRENT LIMIT 3.7A FOR OUTPUT 2 AND 3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65266RHBT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65266RHBT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should be chosen based on the output voltage and current requirements, and should have a low ESR and a high ripple current rating.
  • The TPS65266RHBT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • The TPS65266RHBT output voltage is set using the FB pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. It's recommended to use a 1% or better tolerance resistor to ensure accurate output voltage regulation.
  • The TPS65266RHBT is capable of delivering up to 3A of output current, but the maximum output current depends on the input voltage, output voltage, and thermal design. It's recommended to follow the power dissipation and thermal design guidelines in the datasheet to ensure reliable operation.
