TPS65266RHBR - Texas Instruments

Description: 2.7V to 6.5V Input Voltage, 3A/2A/2A Output Current Synchronous Buck Converters

Download TPS65266RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

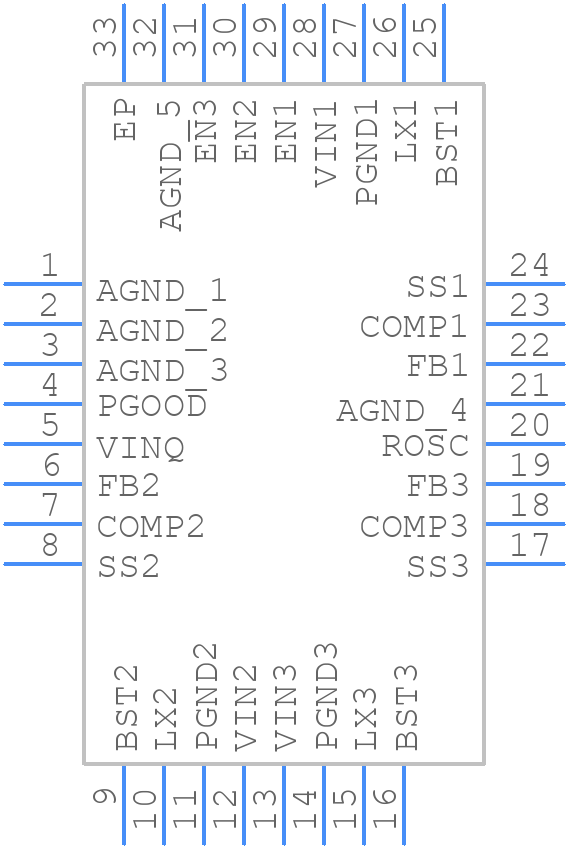

TPS65266RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65266RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TPS65266RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TPS65266RHBR Details

  • Manufacturer Part Number:

    TPS65266RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PEAK CURRENT LIMIT 3.7A FOR OUTPUT 2 AND 3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65266RHBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65266RHBR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65266RHBR can be adjusted using the FB pin. The recommended output voltage range is between 0.9V to 3.3V. Choose an output voltage that meets the requirements of your load, taking into account the maximum current and power dissipation of the device.
  • The TPS65266RHBR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • To ensure stability during startup and shutdown, add a soft-start capacitor (CSS) between the SS pin and GND. This capacitor slows down the startup and shutdown ramps, preventing output voltage overshoots and undershoots.
  • The EN pin is an active-high enable input that allows you to turn the device on and off. Connect the EN pin to a logic signal (e.g., from a microcontroller) to control the power state of the device. When EN is high, the device is enabled; when EN is low, the device is disabled.
