SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1600 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPS65279DAP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS65279DAP datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website provides a layout guide document that provides more detailed information.
To optimize the performance of the TPS65279DAP, ensure that the input and output capacitors are properly selected and placed, the PCB layout is optimized for thermal performance, and the device is operated within the recommended operating conditions. Additionally, TI provides a Power Management Guide that provides more detailed information on optimizing performance.
The TPS65279DAP can operate in ambient temperatures up to 105°C, but the device's performance and reliability may be affected at higher temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation.
The TPS65279DAP is designed to meet the requirements of automotive and industrial applications, which often involve high-vibration environments. However, it's recommended to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels.
TI provides a troubleshooting guide document that provides step-by-step procedures for identifying and resolving common issues with the TPS65279DAP. Additionally, TI's support team can provide assistance with troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65279DAP Overview

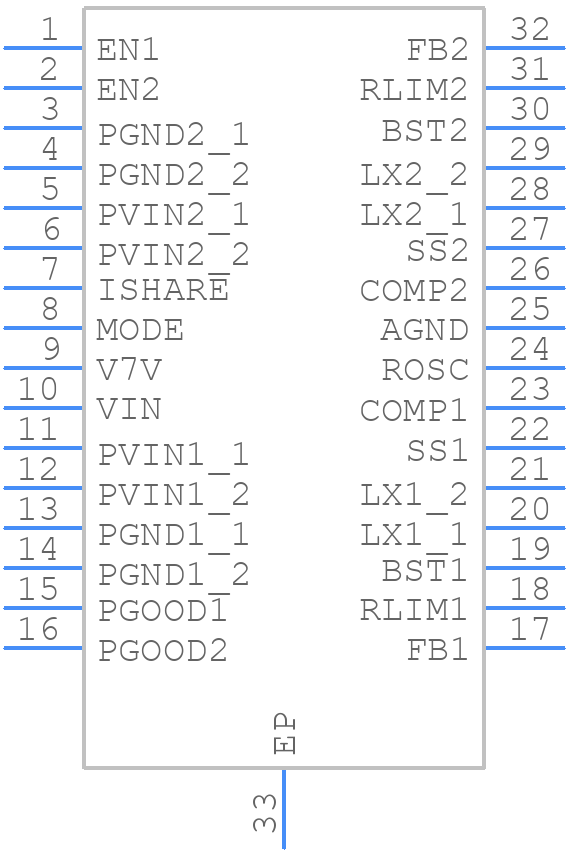

Use the download button to access the TPS65279DAP schematic symbol, PCB footprint, and 3D model.
