TPS65281RGVR - Texas Instruments

Description: 4.5V to 18V, 3A, Precision Adjustable Current Limited Power Distribution Switch

Download TPS65281RGVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

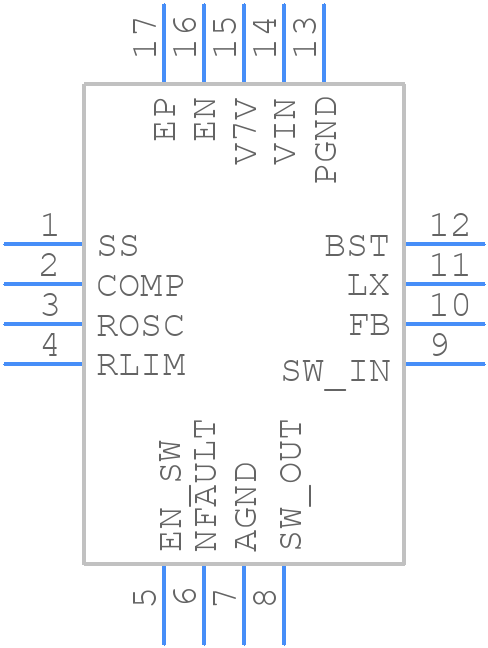

TPS65281RGVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65281RGVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV-1
click to zoom
3D Models
TPS65281RGVR - Texas Instruments - 3D model - Quad Flat No-Lead - RGV-1
click to zoom

TPS65281RGVR Details

  • Manufacturer Part Number:

    TPS65281RGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65281RGVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65281RGVR Evaluation Module User's Guide (SLVUAE4). It's essential to follow this guide to ensure proper thermal performance, noise reduction, and signal integrity.
  • The output capacitor selection depends on the output voltage, output current, and desired transient response. TI recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the TPS65281RGVR datasheet and the TI Capacitor Selection Guide (SLVA466) for more information.
  • The TPS65281RGVR has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and to prevent damage to the device.
  • The TPS65281RGVR is rated for operation up to 105°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the thermal design guidelines and ensure proper heat sinking to maintain a safe operating temperature.
  • TI provides a troubleshooting guide in the TPS65281RGVR datasheet and the Power Management Troubleshooting Guide (SLVA704). Common issues can be caused by incorrect component selection, poor layout, or inadequate thermal design. Use an oscilloscope to monitor the output voltage and current, and check the device's thermal performance using a thermal camera or thermometer.
