TPS65286RHDT - Texas Instruments

Description: Switching Voltage Regulators Step-Down DC-DC Converter

Download TPS65286RHDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

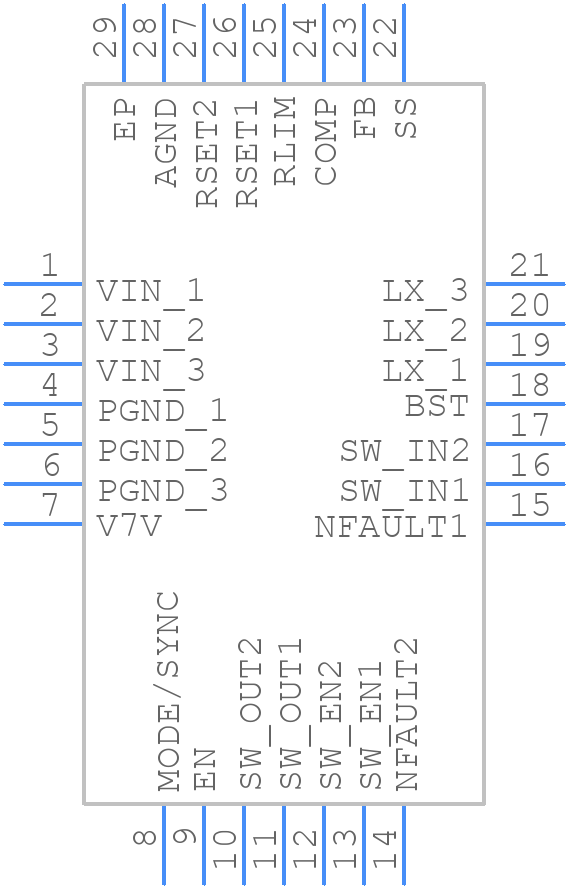

TPS65286RHDT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65286RHDT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028B
click to zoom
3D Models
TPS65286RHDT - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028B
click to zoom

TPS65286RHDT Details

  • Manufacturer Part Number:

    TPS65286RHDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.21V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65286RHDT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS65286RHDT can be found in the Texas Instruments application note 'TPS65286RHDT Layout and Placement Guidelines' (SLUAUH5). It is essential to follow these guidelines to ensure proper thermal performance and to minimize electromagnetic interference (EMI).
  • The compensation network for the TPS65286RHDT can be optimized using the Texas Instruments Power Stage Designer tool. This tool helps to simplify the design process and ensures that the compensation network is properly configured for the specific application.
  • The TPS65286RHDT can handle input voltages up to 18V. However, it is recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • Proper thermal management of the TPS65286RHDT involves ensuring good airflow, using a heat sink if necessary, and following the recommended layout and placement guidelines. The device's thermal performance can be monitored using the thermal shutdown feature, which is triggered when the junction temperature exceeds 150°C.
  • The EN (enable) pin on the TPS65286RHDT is used to enable or disable the device. When the EN pin is pulled low, the device is in shutdown mode, and the output voltage is disabled. When the EN pin is pulled high, the device is enabled, and the output voltage is regulated to the set point.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65286RHDT Overview

Use the download button to access the TPS65286RHDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
