TPS65295RJER - Texas Instruments

Description: Power Management Specialized - PMIC 4.5-V to 18-V VIN complete DDR4 memory power solution 18-VQFN-HR -40 to 125

Download TPS65295RJER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

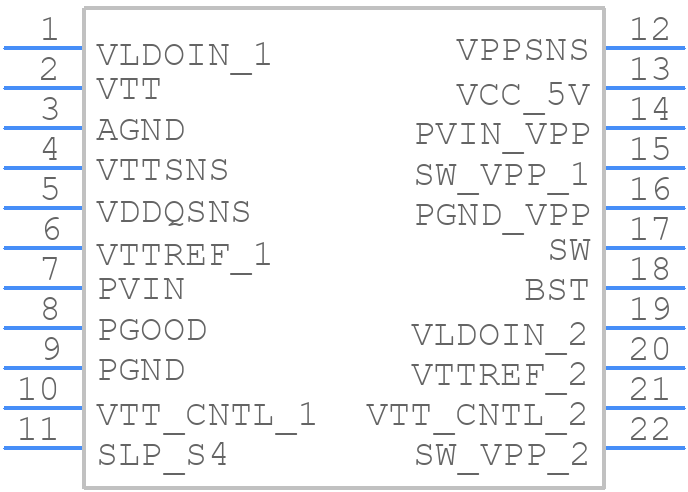

TPS65295RJER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65295RJER - Texas Instruments PCB footprint - Other - Other - TPS65295RJER-1
click to zoom
3D Models
TPS65295RJER - Texas Instruments - 3D model - Other - TPS65295RJER-1
click to zoom

TPS65295RJER Details

  • Manufacturer Part Number:

    TPS65295RJER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-02-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N18

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65295RJER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65295RJER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65295RJER can be set using the VID pins. The VID pins are used to select one of 32 possible output voltages ranging from 0.7V to 3.5V. The output voltage can be calculated using the formula: VOUT = 0.7V + (VID[4:0] x 0.05V).
  • The TPS65295RJER can handle input voltages up to 17V. However, it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The TPS65295RJER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values.
  • The TPS65295RJER has a thermal shutdown temperature of 150°C. When the junction temperature exceeds this value, the device will shut down to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65295RJER Overview

Use the download button to access the TPS65295RJER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
