TPS65296RJER - Texas Instruments

Description: Power Management Specialized - PMIC 4.5-V to 18-V VIN complete LPDDR4 and LPDDR4X memory power solution 18-VQFN-HR -40 to 125

Download TPS65296RJER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

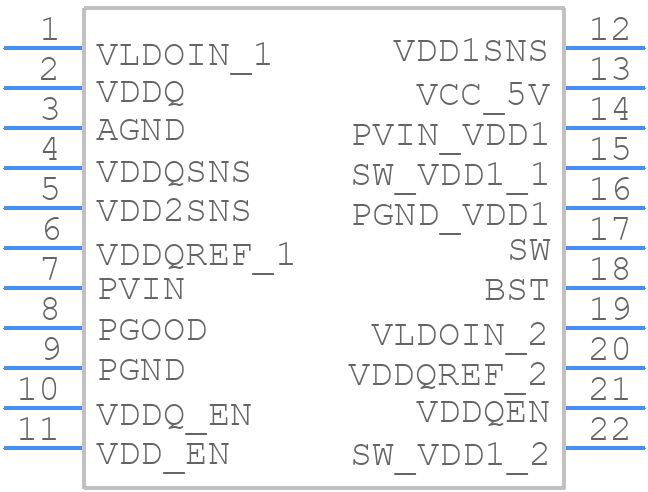

TPS65296RJER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65296RJER - Texas Instruments PCB footprint - Other - Other - TPS65295RJER-1
click to zoom
3D Models
TPS65296RJER - Texas Instruments - 3D model - Other - TPS65295RJER-1
click to zoom

TPS65296RJER Details

  • Manufacturer Part Number:

    TPS65296RJER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N18

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC18(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS65296RJER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65296RJER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The output voltage of the TPS65296RJER can be set using the VID pins. TI provides a VID code table in the datasheet that maps the VID pin settings to specific output voltages. Choose the VID code that corresponds to the desired output voltage for your application.
  • The TPS65296RJER can handle input voltages up to 25V, but the recommended maximum input voltage is 12V to ensure optimal performance and reliability.
  • The TPS65296RJER has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. TI provides a calculation for the OCP resistor value in the datasheet.
  • The TPS65296RJER is rated for operation up to 105°C, but the device's performance and reliability may degrade at high temperatures. TI recommends derating the output current and voltage at high temperatures to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65296RJER Overview

Use the download button to access the TPS65296RJER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
