TPS65300QPWPRQ1 - Texas Instruments

Description: Automotive 5.6V to 40V, 1.2A Buck Converter with 3 LDOs

Download TPS65300QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

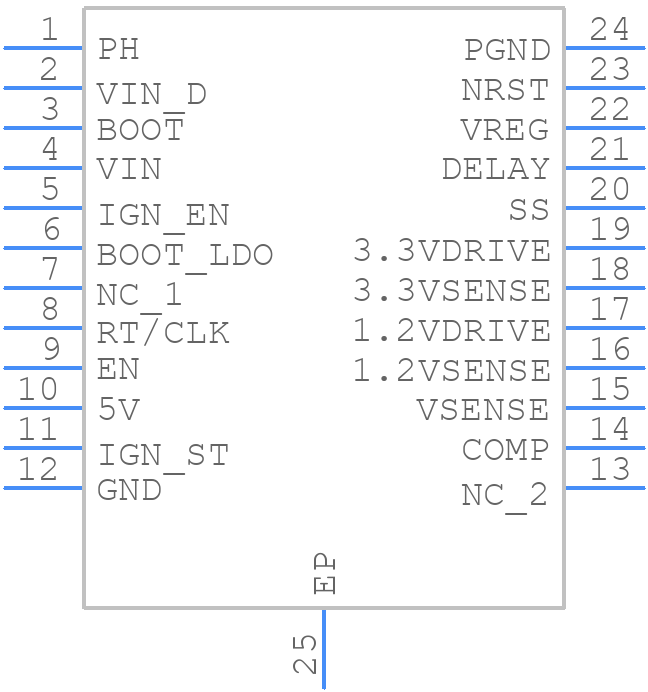

TPS65300QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65300QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
TPS65300QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

TPS65300QPWPRQ1 Details

  • Manufacturer Part Number:

    TPS65300QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5.6 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    5.542 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS65300QPWPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65300QPWPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X5R or X7R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X5R or X7R dielectric is recommended. The capacitance value should be chosen based on the output voltage and the desired ripple voltage.
  • The maximum ambient temperature range for the TPS65300QPWPRQ1 is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, the TPS65300QPWPRQ1 requires a minimum output capacitance of 10uF. Additionally, the output capacitor should have a low ESR and the input capacitor should have a low ESR. The device also requires a minimum input capacitance of 1uF. It's also recommended to add a 10nF capacitor between the VCC pin and the GND pin to improve stability.
  • The maximum output current of the TPS65300QPWPRQ1 is 3A. However, the device can deliver up to 4A peak current for a short duration.
