TPS65300QRHFRQ1 - Texas Instruments

Description: Automotive 5.6V to 40V, 1.2A Buck Converter with 3 LDOs

Download TPS65300QRHFRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

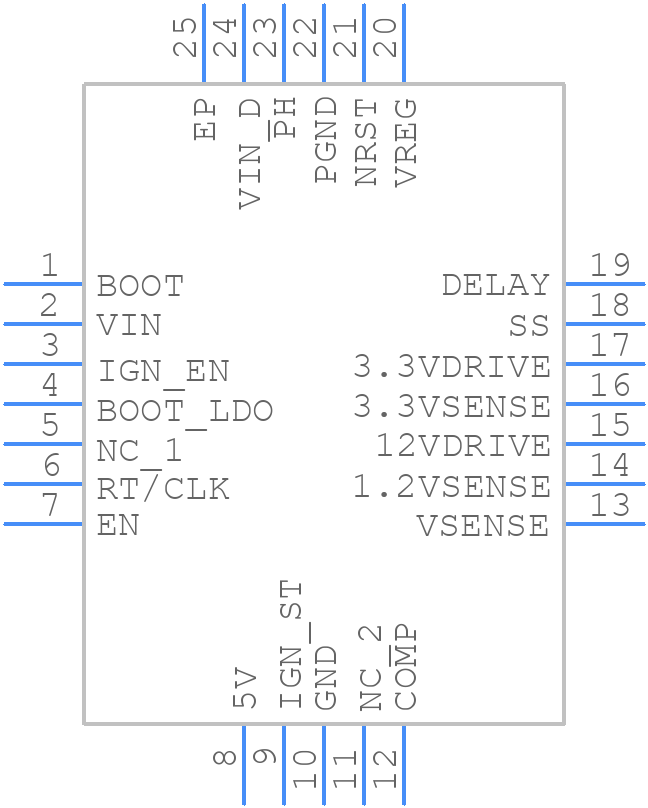

Symbol
TPS65300QRHFRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65300QRHFRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF0024A
click to zoom
3D Models
TPS65300QRHFRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHF0024A
click to zoom

TPS65300QRHFRQ1 Details

  • Manufacturer Part Number:

    TPS65300QRHFRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5.6 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    5.542 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65300QRHFRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65300QRHFRQ1 datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS65300 Layout Guidelines' (SLVAE45) for optimal performance and thermal management.
  • The selection of the output capacitor depends on the output voltage, output current, and ripple requirements. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The 'TPS65300 Output Capacitor Selection' application note (SLVAE46) provides more detailed guidance.
  • The TPS65300QRHFRQ1 has an absolute maximum input voltage rating of 18V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The TPS65300QRHFRQ1 has built-in OVP and UVP features, but they need to be configured using external resistors and capacitors. The 'TPS65300 Overvoltage and Undervoltage Protection' application note (SLVAE47) provides a detailed design guide for implementing OVP and UVP.
  • The TPS65300QRHFRQ1 has a thermal derating curve that reduces the maximum output current as the junction temperature increases. The device can deliver up to 3A of output current at room temperature, but the output current must be derated to 1.5A at 125°C junction temperature. The 'TPS65300 Thermal Derating' application note (SLVAE48) provides more information on thermal derating.
