Texas Instruments provides a recommended PCB layout in the TPS65560RGTR datasheet (Section 10.2) and in the TPS65560RGTR Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. TI recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. Refer to the datasheet (Section 7.3.1) for more information.
The TPS65560RGTR can deliver up to 2A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and thermal conditions. Refer to the datasheet (Section 6.3) for more information on output current capability and thermal derating.
The TPS65560RGTR has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the desired voltage threshold using resistive dividers. Refer to the datasheet (Section 7.3.4) for more information on OVP and UVP configuration.
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65560RGTR Overview

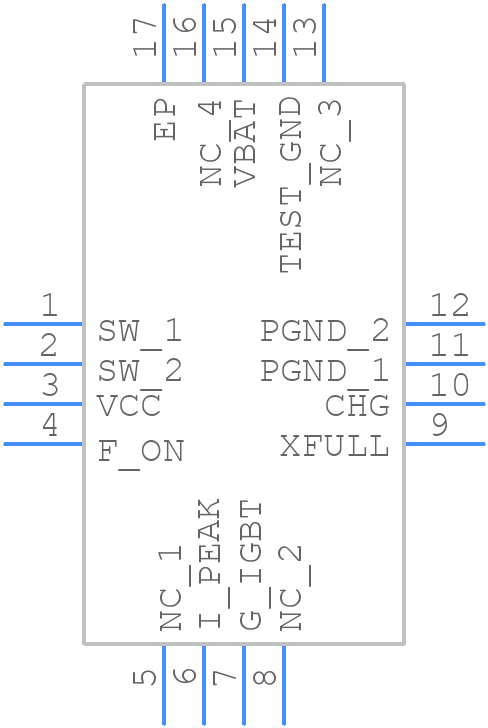

Use the download button to access the TPS65560RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
