TPS65561RGTR - Texas Instruments

Description: Integrated Photo Flash Charger and IGBT Driver

Download TPS65561RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

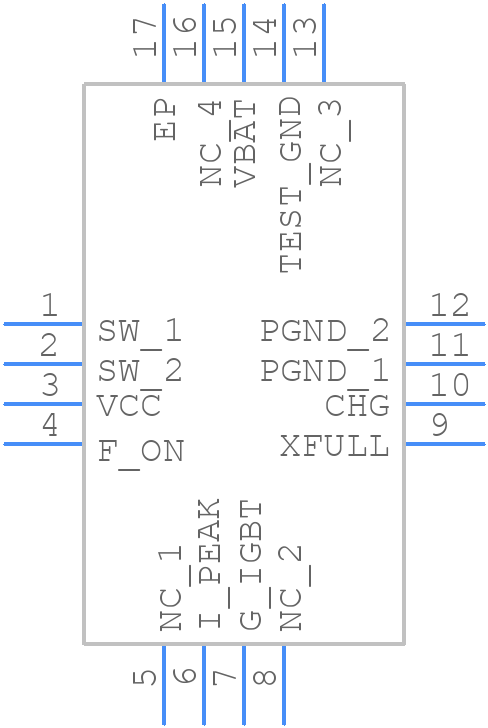

TPS65561RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65561RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height=1
click to zoom
3D Models
TPS65561RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height=1
click to zoom

TPS65561RGTR Details

  • Manufacturer Part Number:

    TPS65561RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    1.6 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Output Current-Max:

    2.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65561RGTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65561RGTR datasheet (Section 10.2) and in the TPS65561RGTR Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
  • The input capacitor values depend on the input voltage, output voltage, and desired output ripple. TI recommends using the WEBENCH Power Designer tool to determine the optimal input capacitor values for your specific application. You can also refer to the datasheet (Section 7.3.1) for general guidelines.
  • The TPS65561RGTR is rated for operation up to 105°C ambient temperature. However, it's essential to consider the device's thermal dissipation and ensure proper heat sinking to maintain a safe junction temperature (TJ) below 150°C.
  • Yes, the TPS65561RGTR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's crucial to follow the recommended design and layout guidelines, and to ensure that the device is operated within its specified ratings and conditions.
  • TI provides a comprehensive troubleshooting guide in the TPS65561RGTR datasheet (Section 11). Additionally, you can consult the TPS65561RGTR Evaluation Module User's Guide and the WEBENCH Power Designer tool for guidance on debugging and optimizing your design.
