TPS65580PWP - Texas Instruments

Description: 4.5 to 18V Input, 2.5A/1.5A/1.5A Triple Sync. Step-Down Converter w/ Advanced D-CAP2™

Download TPS65580PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

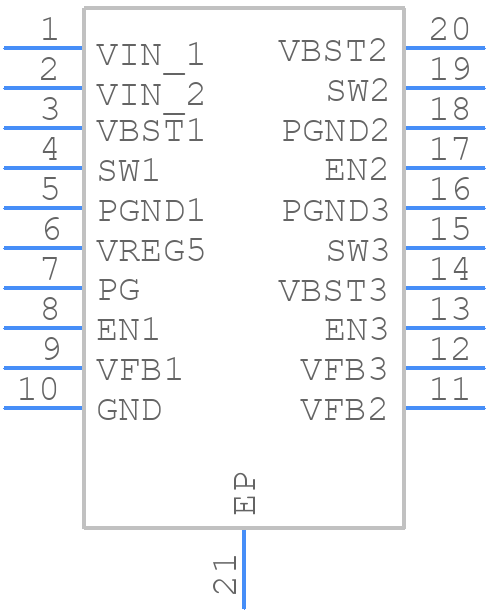

TPS65580PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65580PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom
3D Models
TPS65580PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom

TPS65580PWP Details

  • Manufacturer Part Number:

    TPS65580PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PEAK CURRENT LIMIT 3.4 AND 3.6 AMP OUTPUT 1 AND 3; OUTPUT VOLTAGE RANGE 0.76 V TO 7.0 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.76 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS65580PWP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65580PWP involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS65580PWP depends on the specific application requirements. Generally, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS65580PWP is rated for operation in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation in the system design.
  • Yes, the TPS65580PWP is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments.
  • The TPS65580PWP has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the VIN pin through a resistor. The device will limit the output current to a safe level during an overcurrent event, protecting the system from damage.
