A good PCB layout for the TPS65631DPDR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
To optimize the compensation network for the TPS65631DPDR, you need to consider the output capacitor value, the ESR of the output capacitor, and the desired crossover frequency. A good starting point is to use the recommended values in the datasheet and then adjust the compensation network based on the specific application requirements.
The TPS65631DPDR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent damage to the device.
The TPS65631DPDR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and to ensure good thermal management to prevent overheating.
To troubleshoot issues with the TPS65631DPDR, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for switching noise, ringing, or other anomalies. Check the PCB layout and ensure that the device is properly soldered and that there are no shorts or opens. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65631DPDR Overview

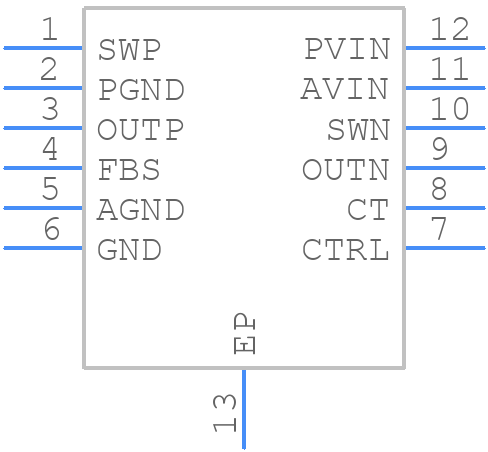

Use the download button to access the TPS65631DPDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Display Drivers
