TPS65632RTER - Texas Instruments

Description: Triple-Output AMOLED Display Power Supply

Download TPS65632RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

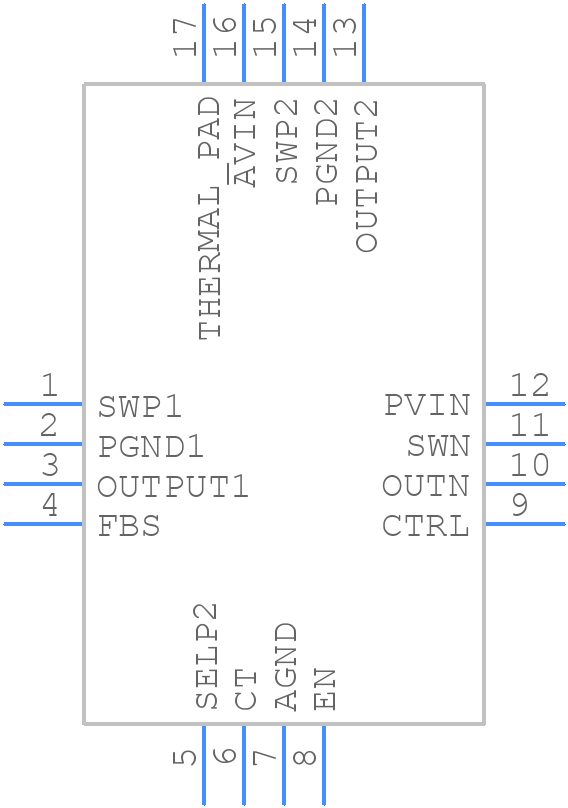

TPS65632RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65632RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TPS65632RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TPS65632RTER Details

  • Manufacturer Part Number:

    TPS65632RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    AC-DC LED POWER SUPPLY MODULE

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    4.6368 V

  • Output Voltage-Min:

    4.5632 V

  • Output Voltage-Nom:

    4.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,.20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    SHORT CIRCUIT, THERMAL

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    2.811 W

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

TPS65632RTER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65632RTER involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
  • Optimizing the compensation network involves selecting the right values for the compensation resistors and capacitors. TI provides a compensation calculator tool to help with this process. Additionally, the datasheet provides guidelines for selecting the compensation components.
  • The TPS65632RTER is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
  • Yes, the TPS65632RTER is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process.
  • Troubleshooting issues with the TPS65632RTER involves checking the PCB layout, component values, and input/output voltage levels. TI provides application notes and technical support resources to help with troubleshooting.
