TPS65640RHRR - Texas Instruments

Description: LCD Bias with Digital VCOM Buffer for Notebook PCs and Tablet PCs

Download TPS65640RHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

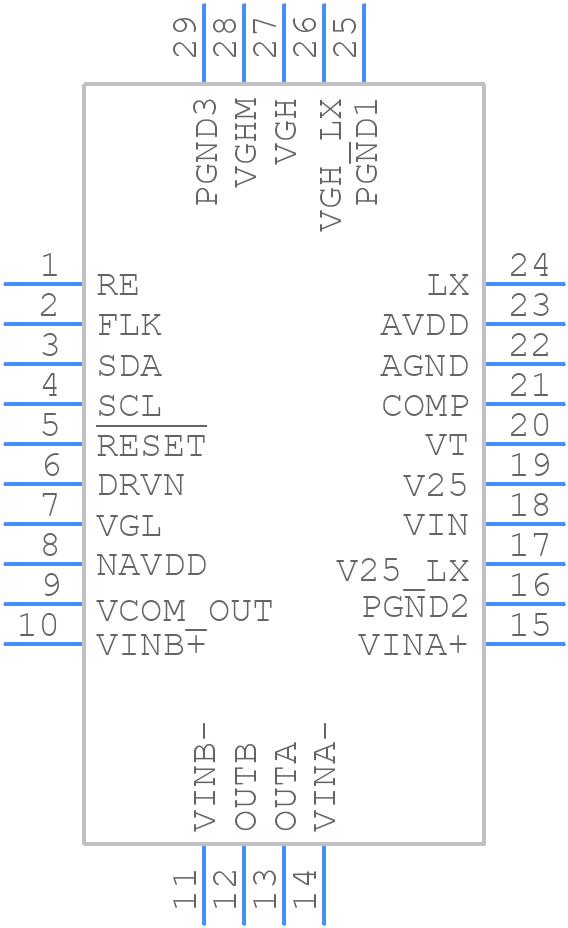

TPS65640RHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65640RHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR (R-PWQFN-N28)
click to zoom
3D Models
TPS65640RHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR (R-PWQFN-N28)
click to zoom

TPS65640RHRR Details

  • Manufacturer Part Number:

    TPS65640RHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-07-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS65640RHRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65640RHRR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The output capacitor selection depends on the output voltage, current, and ripple requirements. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The capacitor should also be placed close to the output pins to minimize inductance.
  • Although the datasheet specifies a maximum input voltage of 5.5V, TI recommends limiting the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The TPS65640RHRR has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Refer to the datasheet and application notes for detailed implementation guidelines.
  • The thermal derating curve is not explicitly provided in the datasheet. However, TI recommends following the thermal design guidelines in the datasheet and application notes to ensure the device operates within the specified temperature range. A general rule of thumb is to derate the output current by 1% per degree Celsius above 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65640RHRR Overview

Use the download button to access the TPS65640RHRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
