TPS659101A1RSL - Texas Instruments

Description: Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family

Download TPS659101A1RSL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

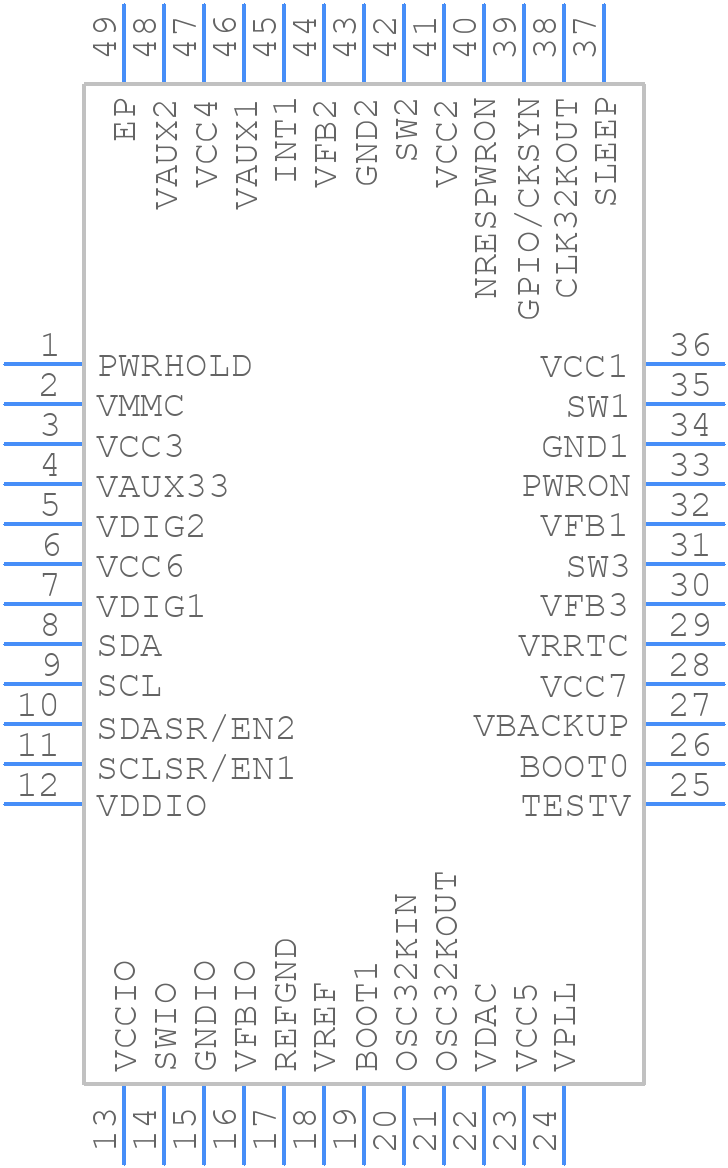

TPS659101A1RSL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS659101A1RSL - Texas Instruments PCB footprint - Other - Other - QFN40P600X600X100-49N
click to zoom
3D Models
TPS659101A1RSL - Texas Instruments - 3D model - Other - QFN40P600X600X100-49N
click to zoom

TPS659101A1RSL Details

  • Manufacturer Part Number:

    TPS659101A1RSL

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS659101A1RSL Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS659101A1RSL Evaluation Module User's Guide (SLUUAC5) and the TPS659101A1RSL Layout Guide (SLUUAC6). These guides provide detailed information on component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TPS659101A1RSL is a highly configurable device, and configuration depends on the specific application requirements. Texas Instruments provides a Power Management Unit (PMU) Configuration Tool (SWGU107) that allows designers to configure the device for their specific application. The tool provides a graphical user interface to select the desired configuration and generates the required register settings.
  • The TPS659101A1RSL has a maximum current capability of 3A per buck converter and 2A per LDO regulator. However, the actual current capability may be limited by the thermal performance of the PCB and the device's thermal management. It is essential to perform thermal analysis and design the PCB accordingly to ensure reliable operation.
  • Texas Instruments provides a comprehensive troubleshooting guide (SLUUAC7) that covers common issues and their solutions. The guide includes information on debugging tools, error detection, and fault handling. Additionally, designers can use the TPS659101A1RSL Evaluation Module to test and validate their design before integrating it into their final product.
  • The TPS659101A1RSL is a general-purpose power management IC that can be used with a wide range of processors and SoCs. However, compatibility depends on the specific power requirements and interface protocols of the processor or SoC. Designers should consult the processor or SoC datasheet and the TPS659101A1RSL datasheet to ensure compatibility and perform any necessary customization.
