Texas Instruments provides a recommended layout and routing guide in the TPS659102A1RSL evaluation module (EVM) user's guide. It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
To optimize the TPS659102A1RSL for low-power operation, ensure that the device is in the correct power mode (e.g., low-power mode or shutdown mode) when not in use. Additionally, adjust the switching frequency, output voltage, and current limit to minimize power consumption. Refer to the datasheet for specific guidelines.
The TPS659102A1RSL has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Ensure that the device is mounted on a suitable heat sink or thermal interface material to prevent overheating. Refer to the datasheet for thermal resistance and junction-to-ambient thermal resistance values.
To troubleshoot issues with the TPS659102A1RSL, start by verifying the input voltage, output voltage, and current. Check for proper connections, soldering, and component placement. Use an oscilloscope to monitor the switching node and output voltage. Consult the datasheet and application notes for troubleshooting guidelines and common issues.
To minimize EMI and EMC issues, ensure that the TPS659102A1RSL is placed in a shielded area, and use a common-mode choke or ferrite bead to filter the input and output lines. Follow proper PCB layout and routing guidelines, and use a suitable EMI filter or shielding to contain radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS659102A1RSL Overview

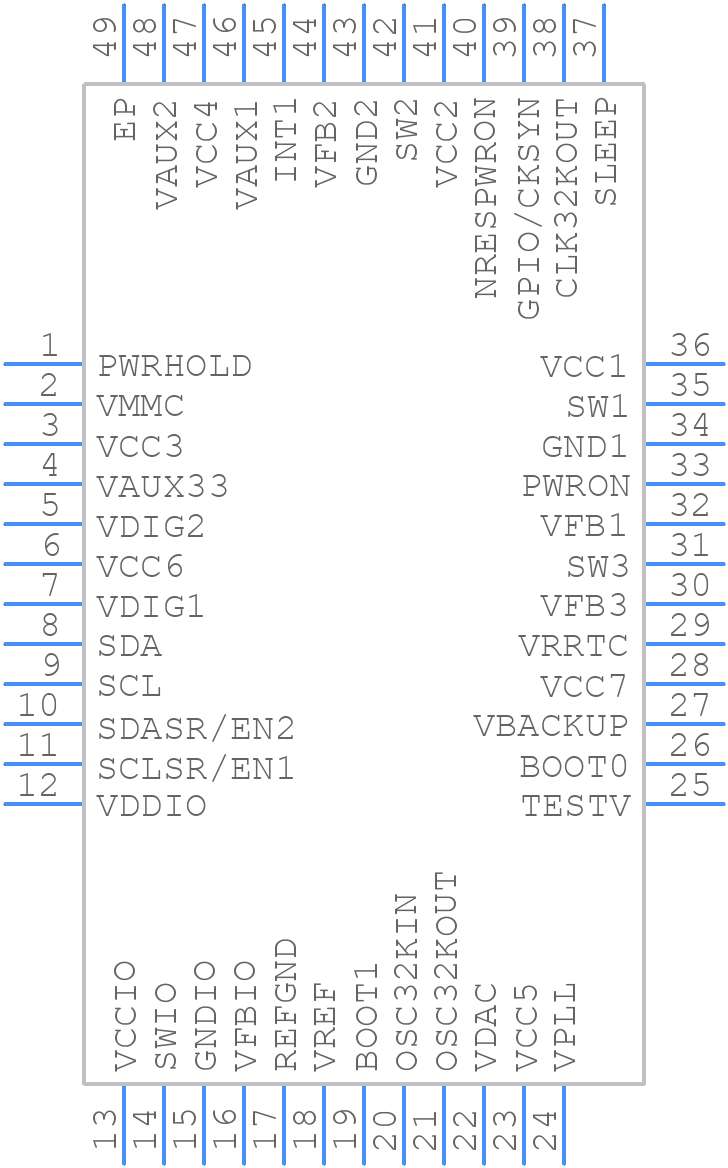

Use the download button to access the TPS659102A1RSL schematic symbol, PCB footprint, and 3D model.
