TPS65910A31A1RSLT - Texas Instruments

Description: Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family

Download TPS65910A31A1RSLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

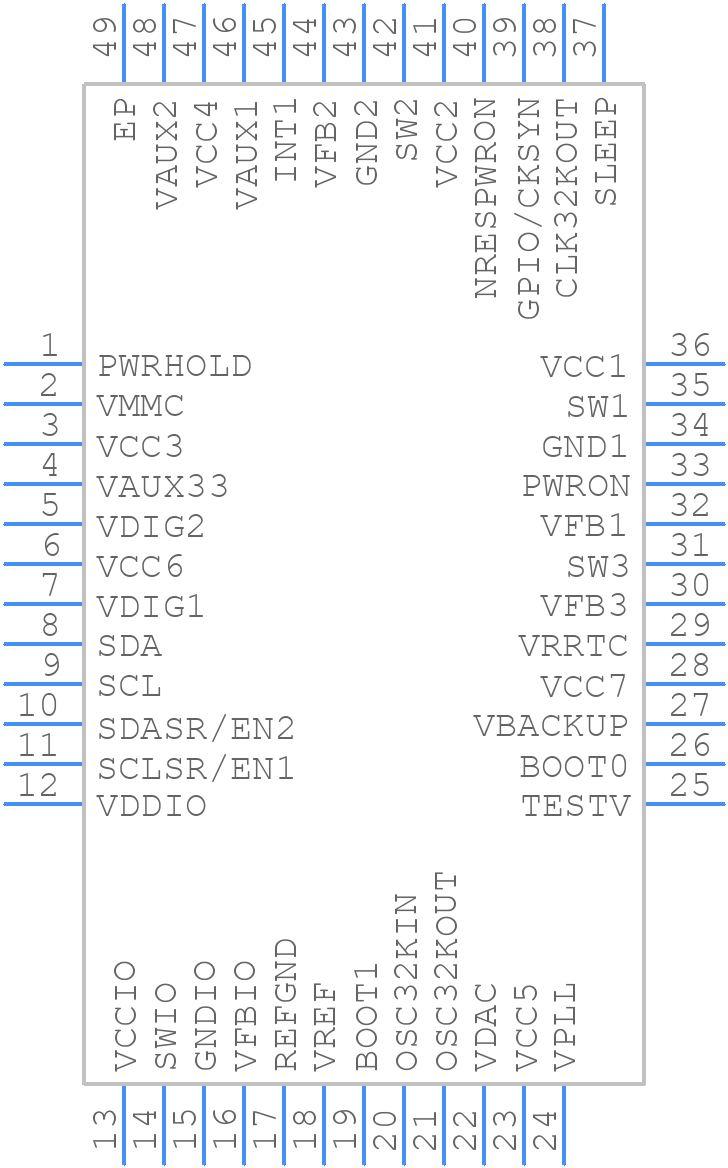

TPS65910A31A1RSLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65910A31A1RSLT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)1-1
click to zoom
3D Models
TPS65910A31A1RSLT - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)1-1
click to zoom

TPS65910A31A1RSLT Details

  • Manufacturer Part Number:

    TPS65910A31A1RSLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65910A31A1RSLT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65910A31A1RSLT datasheet and application notes. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
  • The power sequencing and reset timing can be optimized by using the TPS65910A31A1RSLT's programmable power sequencing and reset timing features. Consult the datasheet and application notes for guidance on how to configure the device for your specific application.
  • The TPS65910A31A1RSLT has a maximum junction temperature of 125°C. Ensure proper thermal management by following the thermal design guidelines in the datasheet and application notes, and using thermal simulation tools to optimize the PCB design and thermal interface materials.
  • Use the TPS65910A31A1RSLT's built-in diagnostic features, such as the fault detection and reporting mechanisms, to troubleshoot issues. Consult the datasheet and application notes for guidance on how to use these features and debug common issues.
  • Yes, the TPS65910A31A1RSLT is designed for high-reliability and safety-critical applications. It meets various industry standards and has been tested to ensure compliance with relevant safety and reliability requirements. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65910A31A1RSLT Overview

Use the download button to access the TPS65910A31A1RSLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
