TPS65910AA1RSLR - Texas Instruments

Description: Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family

Download TPS65910AA1RSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

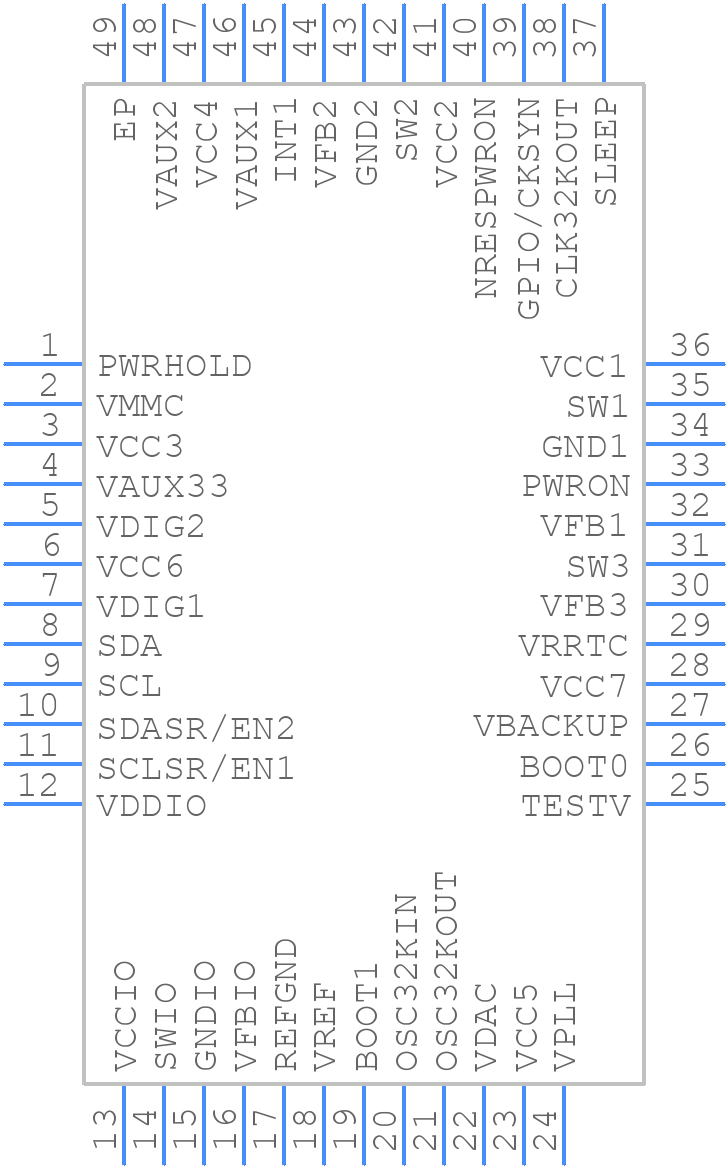

Symbol
TPS65910AA1RSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65910AA1RSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL(S-PVQFN-N48) height 1
click to zoom
3D Models
TPS65910AA1RSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL(S-PVQFN-N48) height 1
click to zoom

TPS65910AA1RSLR Details

  • Manufacturer Part Number:

    TPS65910AA1RSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65910AA1RSLR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65910AA1RSLR Evaluation Module User's Guide (SLUUAC3). It's essential to follow this guide to ensure proper operation and minimize electromagnetic interference (EMI).
  • The TPS65910AA1RSLR has a wide range of configuration options. Texas Instruments provides a software tool called the TPS65910 Configurator Tool (TPS65910-CT) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be loaded into the device.
  • The maximum current rating for each output of the TPS65910AA1RSLR depends on the specific output and the thermal design of the system. Refer to the datasheet for the maximum current ratings for each output. Additionally, it's essential to consider the thermal design and heat sinking to ensure the device operates within its specified limits.
  • Texas Instruments provides a troubleshooting guide in the TPS65910AA1RSLR datasheet and application notes. Engineers can also use the TPS65910 Evaluation Module (EVM) to test and debug their design. Additionally, Texas Instruments offers technical support and a community forum where engineers can ask questions and share knowledge.
  • The TPS65910AA1RSLR has a thermal pad that must be connected to a heat sink or a thermal plane on the PCB to ensure proper heat dissipation. The device has a maximum junction temperature of 125°C. Engineers should follow the thermal design guidelines in the datasheet and application notes to ensure the device operates within its specified temperature range.
