Texas Instruments provides a recommended PCB layout in the TPS659119CAIPFPRQ1 evaluation module (EVM) user's guide, which can be found on the TI website. The EVM user's guide includes a detailed layout guide, including Gerber files and PCB design files.
The TPS659119CAIPFPRQ1 is a highly configurable device, and configuration depends on the specific application requirements. TI provides a software development kit (SDK) that includes a graphical user interface (GUI) tool, which can be used to configure the device. The SDK also includes example code and documentation to help with configuration.
The thermal performance of the TPS659119CAIPFPRQ1 is critical for reliable operation. TI provides thermal performance data, including junction-to-ambient thermal resistance (RθJA) and junction-to-case thermal resistance (RθJC), in the datasheet. Additionally, the EVM user's guide provides guidance on thermal design and layout considerations.
TI provides a troubleshooting guide for the TPS659119CAIPFPRQ1, which can be found on the TI website. The guide includes common issues, symptoms, and solutions, as well as guidance on how to use the device's built-in diagnostic features to troubleshoot issues.
The recommended power-up sequence for the TPS659119CAIPFPRQ1 is critical to ensure proper operation. TI provides guidance on the recommended power-up sequence in the datasheet and EVM user's guide, which includes a detailed description of the power-up sequence and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS659119CAIPFPRQ1 Overview

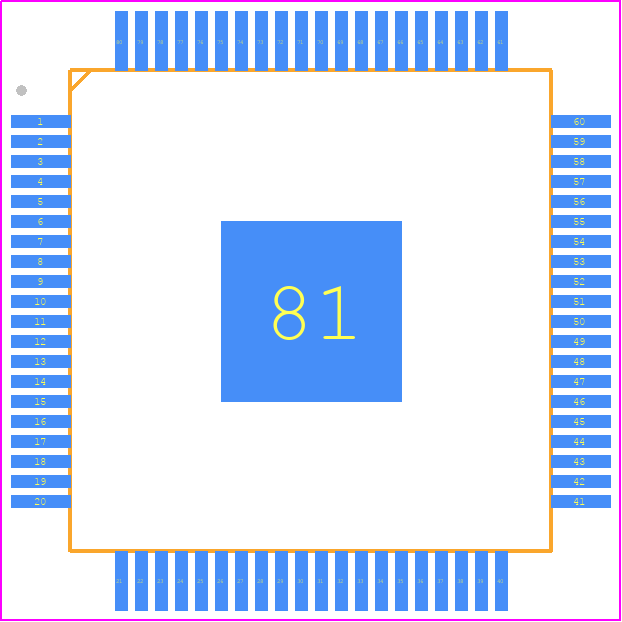

Use the download button to access the TPS659119CAIPFPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
