Texas Instruments provides a recommended PCB layout in the TPS659119 datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for power management devices.
To optimize performance, consider factors such as input voltage, output voltage, and load current. Use the TPS659119 datasheet and application notes to determine the optimal component values, and simulate the design using TI's WEBENCH Power Designer tool or other simulation software.
The TPS659119KBIPFPRQ1 has a high-power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout guidelines. The datasheet provides thermal resistance and junction-to-case thermal resistance values to help with thermal design.
Start by reviewing the datasheet and application notes to ensure correct component values, PCB layout, and configuration. Use oscilloscopes and other diagnostic tools to identify issues such as voltage drops, noise, or overheating. TI's support resources, including the E2E forum and technical support team, can also provide assistance.
Texas Instruments provides reliability data, including MTBF (mean time between failures) and FIT (failures in time) rates, in the TPS659119 datasheet. The device is also qualified to various industry standards, such as AEC-Q100 for automotive applications. TI's quality and reliability metrics are available on their website.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS659119KBIPFPRQ1 Overview

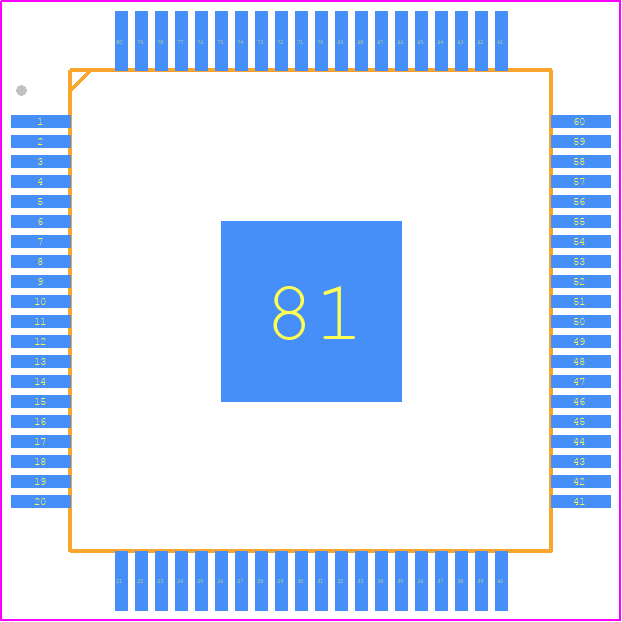

Use the download button to access the TPS659119KBIPFPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
